Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

Why Utilities and Renewable Owners Choose Keentel Engineering

Person in crosshairs. Fo F

30+ Years of Specialized Experience in high-voltage power engineering

Person icon with a badge of honor. Expe Exp E Ex

Certified Power System Engineers with deep technical expertise

Black and white starburst icon with a star in the center. Qual Q

Nationwide Project Support across utility, industrial, and renewable sectors

Magnifying glass with a diamond, circle, triangle, and hexagon.

Advanced Simulation & Modeling Tools for precise system analysis

Compliance-Focused Reporting aligned with IEEE, NERC, NFPA, and OSHA standards

When system reliability and safety are mission-critical, organizations trust Keentel Engineering to deliver engineering clarity and proven results.

Let's Discuss How to Optimize Your Next Project

Submit

Keentel Engineering – Software FAQ
PSS®E PSS®E
ETAP ETAP
PSCAD PSCAD
PowerWorld PowerWorld
SKM PTW SKM PTW
General FAQs
01 What is PSS®E software?
PSS®E (Power System Simulator for Engineering) is a power system simulation software developed by Siemens for analyzing and planning electrical transmission networks. It allows engineers to model large-scale power systems and perform detailed studies related to grid reliability and system performance.
02 What is PSS®E used for in power system studies?
PSS®E is used for transmission planning, interconnection studies, contingency analysis, stability simulations, and grid expansion planning. Utilities and consultants use the software to evaluate how electrical networks behave under different operating conditions.
03 Who uses PSS®E software?
PSS®E is used by electric utilities, transmission planners, system operators, renewable energy developers, engineering consulting firms, and research institutions involved in power system planning and reliability analysis.
04 Can PSS®E be used for renewable energy integration?
Yes. PSS®E supports modeling of inverter-based resources such as solar plants, wind farms, and battery energy storage systems to analyze their impact on grid stability and transmission system performance.
05 Why is PSS®E widely used in transmission planning?
PSS®E is widely used because it supports very large power system models, advanced dynamic simulations, and automated analysis workflows, making it suitable for complex transmission network planning studies.
Technical FAQs
01 How does PSS®E perform contingency analysis?
PSS®E evaluates system reliability by simulating outage scenarios such as transmission line failures, generator trips, or transformer outages and identifying voltage violations or thermal overloads.
02 What types of dynamic simulations can be performed in PSS®E?
PSS®E supports transient stability analysis, generator dynamics simulation, renewable inverter modeling, and disturbance response studies.
03 What is PV and QV analysis in PSS®E?
PV and QV analysis are used to evaluate voltage stability margins and determine the system's ability to maintain acceptable voltage levels under increasing load conditions.
04 How does PSS®E support large power system models?
PSS®E uses optimized numerical algorithms and sparse matrix techniques that allow engineers to simulate electrical networks with up to 200,000 buses.
05 Can PSS®E simulations be automated?
Yes. PSS®E provides extensive Python APIs that allow engineers to automate contingency studies, batch simulations, and large-scale grid analysis workflows.
See All FAQs About PSS®E
General FAQs
01 What is ETAP software?
ETAP is an electrical power system engineering software platform used for designing, simulating, analyzing, and operating electrical networks across industrial, utility, and commercial systems.
02 What types of studies can be performed in ETAP?
ETAP supports power flow analysis, short circuit studies, arc flash analysis, protection coordination studies, harmonic analysis, and dynamic stability simulations.
03 What industries use ETAP software?
ETAP is used by electric utilities, renewable energy plants, data centers, oil and gas facilities, industrial manufacturing plants, and infrastructure projects.
04 What is the ETAP Electrical Digital Twin?
The ETAP Electrical Digital Twin is a virtual representation of a real electrical network that enables engineers to simulate and monitor system performance before implementing changes in the physical system.
05 Why is ETAP widely used for electrical engineering studies?
ETAP provides an integrated platform for design, simulation, monitoring, and optimization of electrical systems, allowing engineers to analyze system behavior and improve operational reliability.
Technical FAQs
01 How does ETAP perform short circuit analysis?
ETAP calculates fault currents using international standards such as ANSI/IEEE C37 and IEC 60909 to evaluate equipment ratings and protection system requirements.
02 What is ETAP arc flash analysis?
Arc flash analysis calculates incident energy levels and safety boundaries based on standards such as IEEE 1584 and NFPA 70E to improve electrical safety.
03 How does ETAP perform protection coordination studies?
ETAP uses Time-Current Characteristic (TCC) curves to evaluate the coordination between relays, breakers, and fuses to ensure selective protection during faults.
04 Can ETAP simulate renewable energy systems?
Yes. ETAP allows engineers to model solar PV systems, wind generators, battery energy storage systems, and microgrids.
05 What dynamic simulations can be performed in ETAP?
ETAP dynamic simulations evaluate system behavior during disturbances such as generator trips, faults, motor starting events, and switching operations.
See All FAQs About ETAP
General FAQs
01 What is PSCAD software?
PSCAD is an electromagnetic transient (EMT) simulation software used to analyze fast electrical and electromagnetic phenomena in power systems.
02 What is PSCAD used for?
PSCAD is used for HVDC studies, converter modeling, renewable inverter simulations, lightning surge analysis, and electromagnetic transient studies.
03 Who typically uses PSCAD?
PSCAD is used by utilities, renewable developers, equipment manufacturers, engineering consulting firms, and research institutions.
04 Why is PSCAD important for renewable energy studies?
PSCAD allows engineers to simulate inverter-based resources and analyze complex electromagnetic interactions within modern power systems.
05 What types of systems can PSCAD model?
PSCAD can model transmission networks, HVDC systems, renewable plants, power electronic converters, and protection systems.
Technical FAQs
01 What is electromagnetic transient simulation?
EMT simulation analyzes high-frequency electrical phenomena that occur in power systems during switching events, lightning strikes, and converter operations.
02 How does PSCAD model transmission lines?
PSCAD models transmission lines using distributed parameter models that capture traveling wave behavior and electromagnetic interactions.
03 What simulation time steps are used in PSCAD?
Typical EMT simulations use time steps ranging from microseconds to tens of microseconds depending on system complexity.
04 Can PSCAD simulate HVDC systems?
Yes. PSCAD provides detailed models for line-commutated converters (LCC) and voltage source converter (VSC) HVDC systems.
05 How does PSCAD simulate inverter-based resources?
PSCAD uses detailed converter control models to simulate grid-forming and grid-following inverter behavior.
See All FAQs About PSCAD
General FAQs
01 What is PowerWorld software?
PowerWorld is a power system simulation and visualization software used to analyze electrical transmission networks.
02 What is PowerWorld Simulator?
PowerWorld Simulator is an interactive tool used to perform power flow analysis, contingency analysis, and voltage stability studies.
03 Who uses PowerWorld software?
PowerWorld is used by utilities, transmission planners, power system operators, consultants, and universities.
04 What types of studies can be performed in PowerWorld?
PowerWorld supports power flow analysis, contingency analysis, optimal power flow studies, voltage stability analysis, and fault analysis.
05 What makes PowerWorld unique?
PowerWorld provides interactive visualization tools such as animated one-line diagrams and geographic system displays.
Technical FAQs
01 How does PowerWorld perform contingency analysis?
PowerWorld simulates outage scenarios and identifies violations such as overloaded lines or low voltage conditions.
02 What numerical methods are used for power flow analysis?
PowerWorld typically uses Newton-Raphson algorithms to solve large power system models efficiently.
03 What is PV and QV analysis in PowerWorld?
PV and QV curves evaluate voltage stability limits and identify potential voltage collapse scenarios.
04 What is Optimal Power Flow (OPF)?
OPF determines the optimal generation dispatch while maintaining system constraints and minimizing operating costs.
05 How large of a system can PowerWorld simulate?
PowerWorld can simulate electrical networks with up to approximately 250,000 buses.
See All FAQs About PowerWorld
General FAQs
01 What is SKM PowerTools software?
SKM PowerTools is an electrical engineering software platform used for power system design, analysis, and safety evaluation.
02 What types of studies can SKM perform?
SKM supports load flow analysis, short circuit studies, arc flash analysis, protection coordination, harmonic analysis, and grounding system studies.
03 What industries use SKM PowerTools?
SKM is widely used in utilities, industrial plants, data centers, oil and gas facilities, and commercial electrical infrastructure projects.
04 What is SKM CAPTOR used for?
CAPTOR is SKM's protective device coordination module used to analyze relay, breaker, and fuse coordination using time-current curves.
05 Why is SKM widely used for electrical system analysis?
SKM provides integrated modules that allow engineers to perform multiple electrical studies within a single software platform.
Technical FAQs
01 How does SKM perform short circuit analysis?
SKM calculates fault currents using ANSI and IEC standards and evaluates symmetrical and asymmetrical fault conditions.
02 What is arc flash analysis in SKM?
Arc flash analysis determines incident energy levels and hazard boundaries to improve electrical safety and comply with standards such as IEEE 1584.
03 How does SKM perform load flow analysis?
Load flow analysis calculates voltage levels, power flows, and system losses within electrical networks.

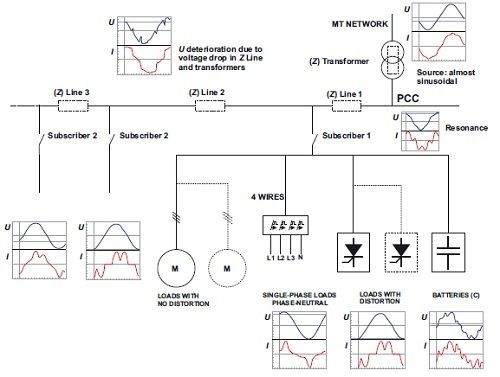

04 Can SKM simulate harmonic distortion?
Yes. The HI_WAVE module evaluates harmonic distortion caused by non-linear loads and power electronic devices.
05 How does SKM evaluate protection coordination?
SKM analyzes protective device operation using time-current curves to ensure proper fault isolation.
See All FAQs About SKM PowerTools
