Effortless NERC Compliance: Using PLX82-MNET-61850 Gateway for Audit-Ready Substation Communication
June 26, 2025 | Blog
In the evolving landscape of power systems and substation automation, interoperability has become a pressing challenge. The integration of legacy Modbus devices with IEC 61850 substation systems is essential for unified communication. The PLX82-MNET-61850 gateway emerges as a robust solution, enabling seamless protocol translation between Modbus TCP/IP and IEC 61850, supporting NERC compliance and streamlining utility operations.
This blog explores the gateway’s technical features, configuration tools, diagnostic capabilities, and integration workflows—making it ideal for electrical utilities, OEMs, and industrial automation professionals.
A secure IEC 61850 gateway is essential for ensuring reliable communication and cybersecurity in modern substation automation systems.
What is the PLX82-MNET-61850 Gateway?

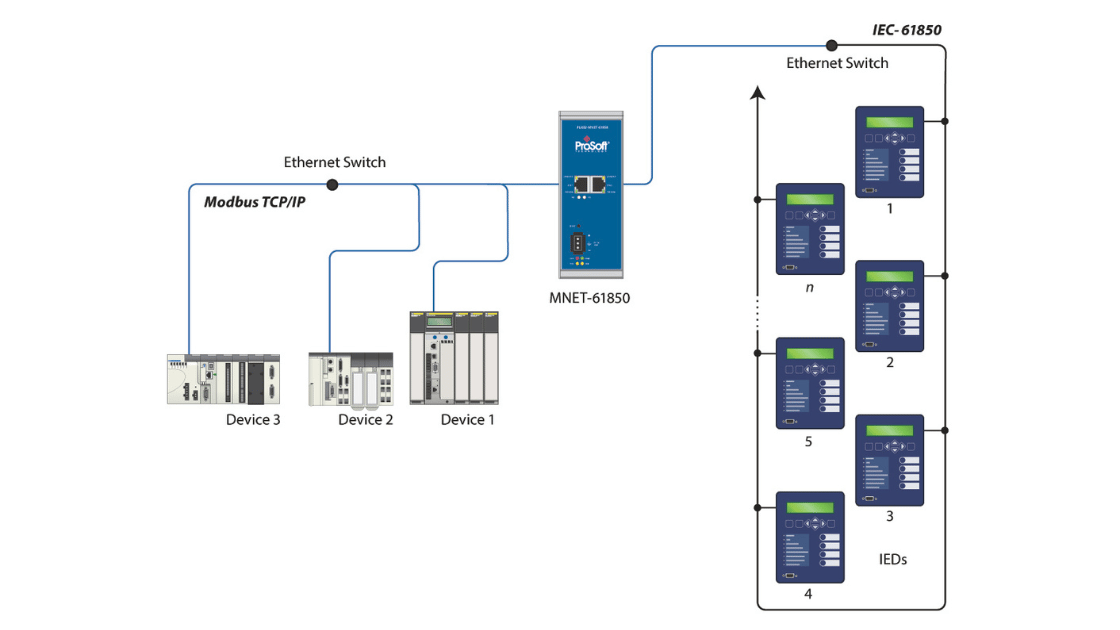

The PLX82-MNET-61850 is a protocol gateway from ProSoft Technology designed to bridge Modbus TCP/IP networks with IEC 61850-based substation communication systems. Featuring dual Ethernet ports, advanced diagnostics, IED file import, and dual Modbus roles, it supports a range of use cases—from real-time monitoring to disaster recovery and audit-readiness for NERC compliance.
The PLX82-MNET-61850 plays a key role in enabling seamless integration within a substation IEC 61850 gateway environment.
Core Features of the PLX82-MNET-61850 Gateway
The PLX82-MNET-61850 gateway offers several standout features designed for efficient and reliable substation communication.
a. Seamless Unity Pro Integration
It automatically generates application-specific Variable and Function Block files, eliminating the need to manually build communication logic or tag structures within Unity Pro or Control Expert projects. This significantly reduces engineering time and ensures accurate protocol alignment.
b. Configuration Archiving and Diagnostics
All configuration data is stored on industrial SD cards, allowing for fast and simple disaster recovery. Additionally, embedded diagnostic tools provide insight into gateway status, Modbus performance, and IEC 61850 communication health — all accessible through the configuration utility.
c. Import IED Files
The gateway enables users to import Intelligent Electronic Device (IED) files, making it easy to map IEC 61850 data attributes directly to Modbus registers. This simplifies integration and reduces setup time for substation IEDs.
d. Modbus TCP/IP Client/Server Support
It supports communication with multiple Modbus TCP/IP clients or SCADA systems simultaneously, allowing seamless data exchange between legacy devices and IEC 61850-based systems.
IEC 61850 and Modbus TCP/IP – Protocols Comparison
Understanding the differences between these protocols explains the need for a gateway:
Engineers rely on IEC 61850 gateway solutions to bridge communication gaps between legacy and modern digital substations.
| Attribute | Modbus TCP/IP | IEC 61850 |
|---|---|---|
| Origin | Industrial automation | Substation automation |
| Data Modeling | Address-based | Object-oriented (Logical Nodes) |
| Communication Model | Request/Response | Peer-to-peer, Event-driven |
| Time Synchronization | Not supported | GOOSE and Sampled Values |
| Configuration | Not supported Manual mapping | SCL-based standard modeling |
The PLX82-MNET-61850 handles these contrasts through protocol translation and data abstraction.
Configuration Utility – Streamlining Engineering Workflows
The ProSoft Configuration Builder (PCB) simplifies setup:
- IED file import (ICD, CID, SCL formats) for IEC 61850 object mapping.
- Mapping of Modbus coils/registers to IEC 61850 logical nodes and data objects.
- Supports drag-and-drop mapping to reduce engineering time.
- Ability to monitor network statistics and traffic for real-time diagnostics.
Additionally, you can simulate Modbus and IEC 61850 communications before going live, enabling thorough validation.
High Availability Through SD Card Backup – Supporting NERC Compliance Requirements
One standout feature is the ability to save the full gateway configuration on an SD card:
- In case of hardware failure, simply insert the SD card into a new PLX82 gateway to instantly restore configurations.
- Reduces downtime and eliminates the need for laptop reconfiguration on-site.
This supports NERC-CIP and utility reliability compliance efforts.
Read more about: NERC CIP Risk Assessment & Cybersecurity Compliance
Extensive Diagnostics & Monitoring for IEC 61850 & Modbus
According to the user manual, diagnostic capabilities include:
- Real-time event logs and fault reporting.
- Traffic counters for transmitted and received Modbus and IEC 61850 packets.
- Timestamped logs for GOOSE and MMS communications.
- Easy export of logs for NERC or system audit trails.
Diagnostics are available via both Web Server GUI and Configuration Utility.
Advanced logging of GOOSE and MMS communications can be paired with real-time synchrophasor monitoring tools for comprehensive grid analysis and event detection.
Dual Role Capability: Modbus TCP Client and Server
Unlike other gateways that support only one Modbus mode, the PLX82 can:
- Act as a Modbus server (slave) to receive requests from SCADA/HMI.
- Function as a Modbus client (master) to poll data from PLCs or RTUs.
Simultaneous communication ensures multi-system compatibility, reducing the need for multiple gateways.
IEC 61850 IED Interfacing and SCL Modeling
The gateway supports object-based mapping:
- Users can import SCL files (Substation Configuration Language).
- Logical devices and logical nodes (e.g., LLN0, LPHD, MMXU) are extracted.
- Attributes like voltage.instMag, current.ang, stVal, and q can be mapped.
Example
Map MMXU1.PhV.phsA.mag.f (phase A voltage) to Modbus register 40001.
This enables utilities to build IEC 61850-compliant front ends for legacy Modbus devices.
Industrial Applications
Key use cases include:
- Substation modernization: Integrating Modbus-based protection relays into IEC 61850 stations.
- Renewable energy plants: Bridging inverter SCADA (Modbus TCP) to utility relays.
- OEM applications: Embedding 61850 compatibility without changing device firmware.
- Oil & Gas: Monitoring RTUs and wellheads in IEC 61850-based SCADA.
Deployment Scenarios
The gateway is ideal for:
- Ring and star topologies in substations.
- Ethernet VLANs and managed switches.
- IEC 61850 GOOSE messaging over redundant LANs.
- Multi-protocol SCADA rooms (e.g., Modbus HMI and 61850 RTAC).
Support for standard RJ-45 ports and IP settings makes integration easier.
Certifications and Compliance Features
PLX82-MNET-61850 Gateway supports:
- IEC 61850 Edition 2.
- Modbus TCP/IP per PI standard.
- CE, UL, and ATEX certifications for use in industrial and substation environments.
- Secure firmware updates and configuration protection.
This ensures seamless IEC 61850 gateway integration for utilities striving toward audit-ready NERC compliance. For full support with NERC-mandated communication requirements, explore our
NERC Compliance Services.
Benefits of PLX82-MNET-61850
The PLX82-MNET-61850 gateway offers a wide range of benefits for utility automation engineers and OEMs aiming for seamless IEC 61850 gateway integration and NERC compliance. Below is a summary of the key features and their benefits:
| Feature | Benefit |
|---|---|
| Auto Unity Pro Generation | Saves PLC programming time |
| SD Card Backup | Enables fast disaster recovery |
| Dual Modbus Roles | Increases system flexibility |
| Web & Utility Diagnostics | Enables remote troubleshooting |
| IED File Import | Reduces IEC 61850 mapping effort |
| VLAN Ready | Fits secure substation networks |
FAQs: PLX82-MNET-61850 Gateway
What protocols does the PLX82-MNET-61850 gateway support?
The PLX82-MNET-61850 gateway supports Modbus TCP/IP (client/server) and IEC 61850 MMS/GOOSE communication protocols for seamless substation integration.
Can it communicate with multiple Modbus devices simultaneously?
Yes, the gateway allows concurrent communication with multiple Modbus TCP/IP clients or servers, supporting complex SCADA architectures.
What kind of data mapping does the gateway support?
It supports flexible mapping of Modbus registers and coils to IEC 61850 logical nodes and data attributes, enabling smooth protocol conversion.
Is Unity Pro required for configuration?
Unity Pro is not required for configuring the gateway, but if you're using Schneider PLCs, it will auto-sync function blocks and tags.
Can I import IED configuration files into the gateway?
Yes, the PLX82 supports ICD, CID, and SCL file imports for seamless IEC 61850 IED integration.
What diagnostic features are included in the gateway?
Diagnostic tools include real-time event logs, network traffic monitors, packet counters, and timestamped logs for IEC 61850 communication analysis.
What happens if the PLX82 gateway hardware fails?
In case of failure, move the SD card to a new device to instantly restore the gateway configuration, supporting disaster recovery for NERC compliance.
Does the PLX82 support GOOSE messaging?
Yes, it fully supports IEC 61850 GOOSE messaging, enabling peer-to-peer event-based communication.
What is the configuration tool used with the PLX82?
The ProSoft Configuration Builder (PCB) software is used for setting up, mapping, and monitoring the gateway.
Can the gateway serve as both Modbus client and server?
Yes, the PLX82-MNET-61850 can function in both roles simultaneously, making it a flexible Modbus to IEC 61850 converter.
Is VLAN support available for secure substation networks?
Yes, the gateway supports VLAN configurations, ensuring segmented and secure communication in IEC 61850 environments.
How are Modbus addresses mapped to IEC 61850 objects?
You can use drag-and-drop mapping in PCB or import CSV/SCL files to associate Modbus data points with IEC 61850 objects.
What types of power system data can be mapped?
Voltage, current, frequency, relay states, protection trips, and breaker status signals can all be mapped between protocols.
Is firmware on the PLX82 gateway upgradeable?
Yes, the firmware is upgradeable via USB or through the configuration utility to keep the gateway compliant and secure.
Does the gateway support redundancy?
While it supports redundant networking architectures, the hardware itself does not provide failover redundancy.
Can I monitor the gateway’s health remotely?
Yes, real-time health diagnostics and status monitoring are available via the web interface or PCB configuration tool.
Is the PLX82 certified for utility and substation use?
Yes, it’s certified with UL, CE, and ATEX, making it suitable for industrial and utility substation applications.
What type of memory card is needed for backup?
The gateway uses a standard industrial SD card (2–32 GB) for configuration backup and restoration.
Can the device operate in harsh environments?
Yes, it is designed for industrial-grade environments with wide temperature range and EMI tolerance.
Does the PLX82 require an external power supply?
Yes, it requires an external power input — either 24VDC or 110/220VAC, depending on the model used in the substation.
