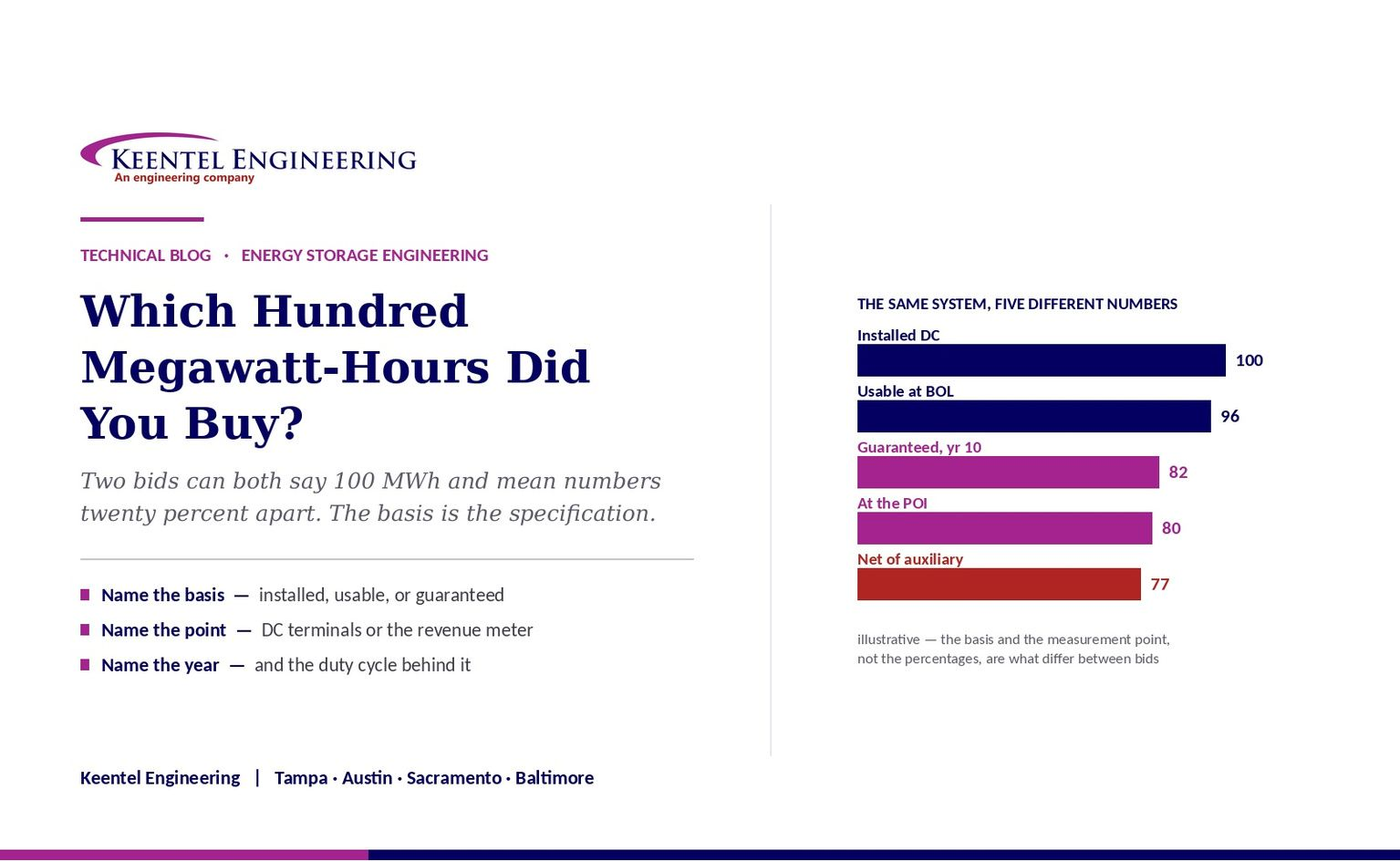

Which Hundred Megawatt-Hours Did You Buy?

STATCOM reactive power output versus system voltage compared with capacitor and SVC performance
A calendar icon featuring a square outline, a top binding, and a grid of dots representing days. D

Aug 03, 2026 | Blog

Nameplate, Usable, Guaranteed and Delivered Energy in a Battery Storage System — Why the Measurement Point and the Definition Matter More Than the Percentages, and How to Compare Bids That Are Not Comparable


1. Executive Summary

A battery energy storage system marked one hundred megawatt-hours does not deliver one hundred megawatt-hours to the grid. That much is well understood, and the loss chain — state-of-charge limits, degradation, temperature, conversion losses, auxiliary consumption — appears in every explainer on the subject.


The explainers are directionally right and operationally useless, for three reasons. They present a single stack of percentages as though every project shares it. They apply deductions that, depending on how the vendor defines its nameplate, may already be inside the number being deducted from. And they treat the answer as an engineering estimate when it is a contractual definition: the only figure that matters commercially is the energy the supplier guarantees, at a named measurement point, at named conditions, under a named duty cycle, in a named contract year.


That distinction is not pedantry. Two suppliers can both offer one hundred megawatt-hours and mean numbers that differ by twenty percent, because one is quoting installed direct-current energy at beginning of life and the other is quoting guaranteed alternating-current energy at the point of interconnection in year ten, net of auxiliary load. Comparing the headline figures compares nothing. Worse, an owner who normalises the bids incorrectly can select the more expensive system while believing the opposite.


This paper works through what each capacity definition actually means, how the measurement point changes every number downstream of it, where the common loss stack double counts, why degradation is a duty-dependent curve rather than a percentage, how augmentation and oversizing trade against each other, what temperature genuinely affects, the difference between a one-way conversion loss and round-trip efficiency, the auxiliary load metering boundary that decides who pays for the parasitic energy, and the throughput limits buried in every warranty. It closes with a bid normalisation checklist, a testing and verification section, and a twenty-five question FAQ.


The sentence to carry into every procurement


Do not compare nameplate. Compare guaranteed energy, at the contract measurement point, at reference temperature, under the specified duty cycle, in a specified contract year, net of auxiliary load, with the availability guarantee stated separately.


If a bid cannot be expressed in those terms, that is itself the finding.


2. The Question Is Which Hundred Megawatt-Hours

The industry uses the same unit for at least six different quantities, and vendors are not being deceptive when they use different ones — they are quoting the number their product is naturally described by. The problem is that the buyer receives them all as though they were the same measurement.



An integrator quoting installed direct-current energy is describing the sum of the cell capacities as manufactured. A supplier quoting usable energy is describing what the battery management system will actually permit to be withdrawn, at beginning of life, under stated conditions. A supplier quoting guaranteed energy is making a commercial commitment about what will be available after a specified period of operation under a specified duty. Each is a legitimate description. None of them is the others.


This is the same class of problem as comparing a solar plant on module nameplate rather than on modelled annual production, except that storage has more definitional layers and less standardised practice. It is why the first question in any storage technical review should be what basis the number is quoted on — and why the answer is often "we would need to ask the vendor."

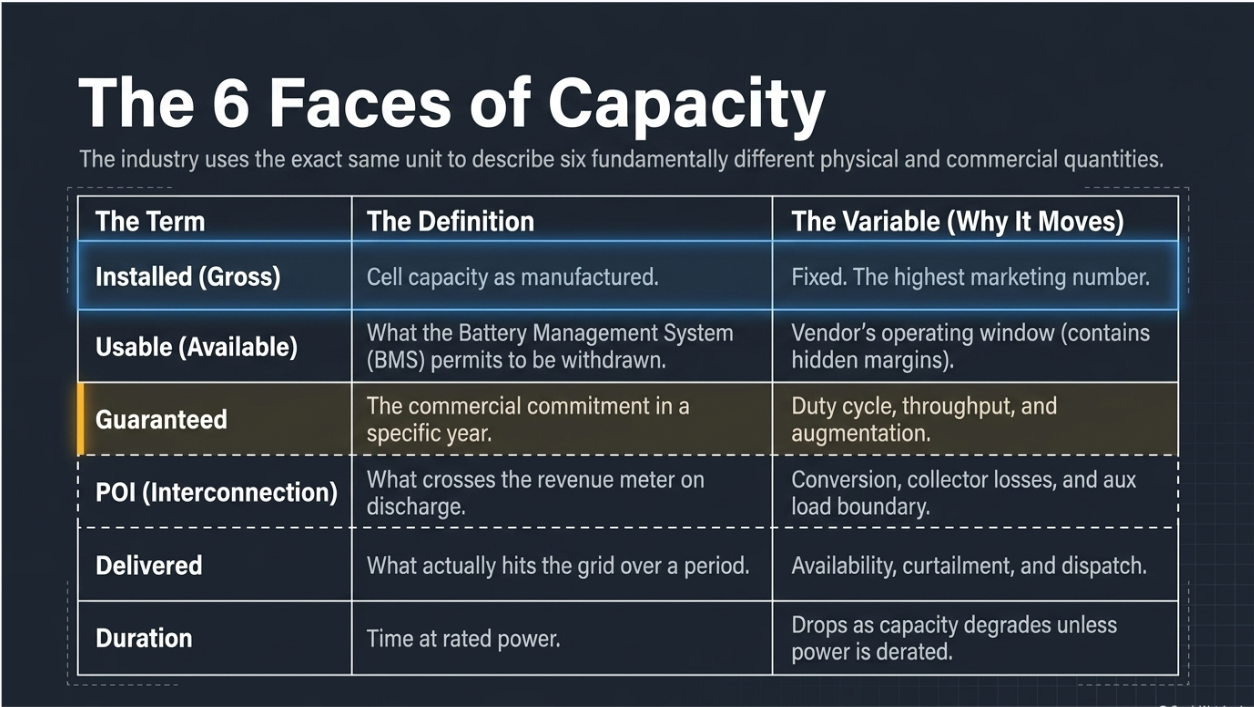

3. Six Different Capacity Numbers

Term What it means Where it is measured Why it moves
Installed or gross energy The sum of cell or module rated capacity as manufactured, before any control limits are applied Cell terminals, nominally Fixed at manufacture; the largest number available and therefore the one most often marketed
Usable or available energy What the battery management system permits to be withdrawn between its operating limits, at beginning of life Battery direct-current terminals Vendor-defined operating window; may already include reserved margin the buyer cannot see
Guaranteed energy The commercial commitment: what the supplier warrants will be available in a stated contract year under stated conditions Whatever the contract names — and this varies Duty cycle, temperature, cycles per year, throughput, and the augmentation strategy
Energy at the point of interconnection What crosses the revenue meter on discharge Revenue metering point Conversion, transformer and collector losses, and whether auxiliary load is inside or outside the boundary
Delivered energy over a period What the system actually put onto the grid over a month or a year Revenue metering point, integrated over time Availability, dispatch, curtailment, state-of-charge management, and everything above
Discharge duration at rated power How long the system can sustain its rated output Depends on which of the above is used as the numerator Falls as capacity degrades unless power rating is also derated or capacity is augmented

The single most useful discipline an owner can adopt is to require every capacity figure in every document — proposals, datasheets, models, the interconnection application, the offtake agreement — to carry its basis in the same sentence. A number without a basis is not a specification.

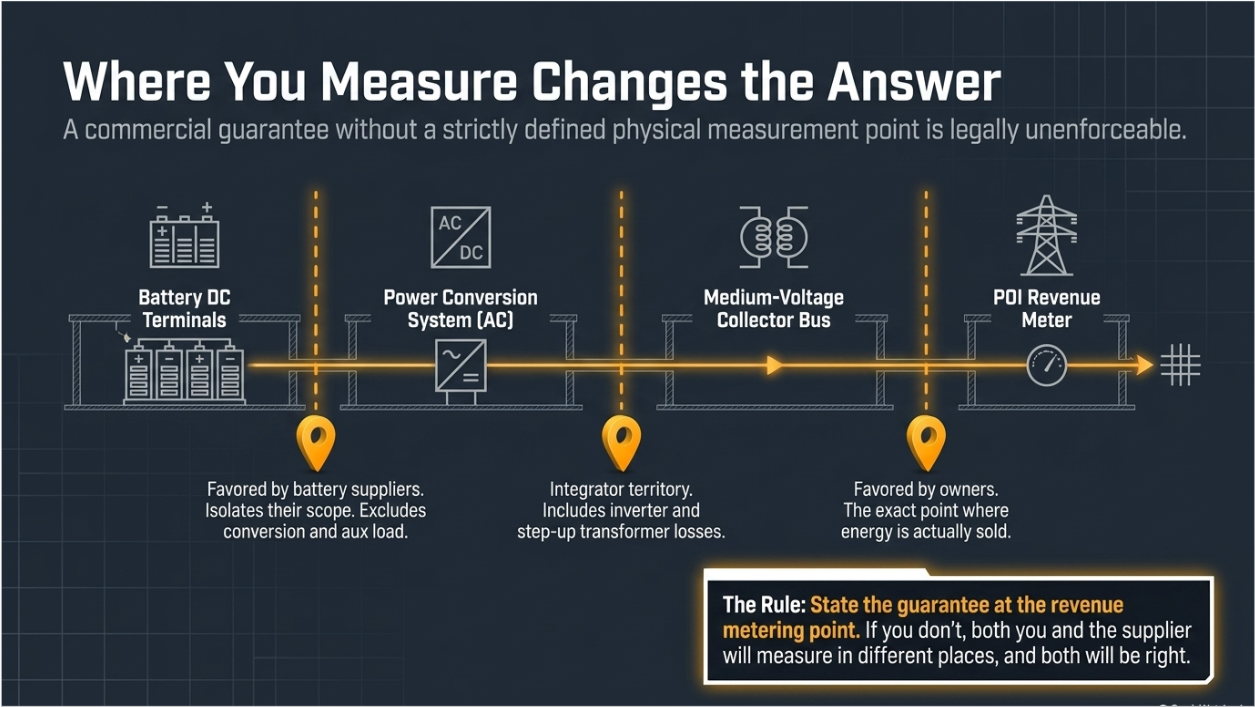

4. Where You Measure Changes the Answer

Every deduction in the loss chain sits between two physical points, and naming those points is what makes the deduction meaningful. A guarantee expressed without a measurement point is unenforceable in any useful sense, because the supplier and the owner will measure in different places and both will be right.

Measurement point What is included by the time you get here Who typically prefers it
Battery direct-current terminals Cell capacity and the management system’s operating window; nothing else Battery suppliers, because it isolates their scope from the rest of the plant
Power conversion system alternating-current terminals The above plus conversion losses in the converter Integrators quoting a system rather than a battery
Medium-voltage collector bus The above plus the inverter step-up transformer and cabling losses Rarely used as a guarantee point, though it is where several losses become visible
Point of interconnection revenue meter The above plus main transformer and collector system losses, and — depending on the arrangement — auxiliary load Owners and offtakers, because it is where the energy is actually sold

The provision that resolves most disputes


State the guarantee at the revenue metering point, and state explicitly whether auxiliary consumption is inside or outside that boundary.


Everything else — conversion efficiency, transformer losses, cable losses — then falls inside the supplier’s scope to manage, which is where the incentive belongs.


5. The Stack, Corrected

The familiar waterfall runs nameplate, then state-of-charge limits, then degradation, then temperature, then conversion, then auxiliary. Reordered and defined, it is a useful frame; taken literally, it produces wrong answers in two ways.


The first error is double counting. If the quoted nameplate is already usable energy — which it frequently is for modern lithium iron phosphate products — then applying a further state-of-charge deduction subtracts the same reservation twice. The second error is treating separable effects as sequential multipliers. Temperature does not reduce usable energy by a fixed percentage in a thermally managed system; it increases auxiliary consumption, and at extremes it limits available power and accelerates degradation. Deducting it as a flat energy haircut and then separately deducting auxiliary load counts part of the same physics in two places.


A defensible framing separates the chain into three questions rather than one stack.


  • How much energy can be withdrawn from the battery, in this contract year, under this duty cycle and at this temperature? That is the battery question, and it combines the operating window, the degradation curve, and the conditions.
  • How much of that reaches the metering point? That is the electrical question — conversion, transformers, cables — and it is a straightforward efficiency calculation at the actual operating power.
  • How much is consumed by the plant itself, and on which side of the meter? That is the auxiliary question, and it is as much a commercial boundary as an engineering one.



Answering those three separately is more work than multiplying six percentages, and it produces a number that survives contact with a vendor.


6. State-of-Charge Limits and Double Counting

Cells are not operated across their full theoretical range. Charging to the absolute upper limit and discharging to the absolute lower limit accelerates degradation sharply and, at the top of the range, raises safety risk. Every system therefore operates within a window managed by the battery management system.


What varies between products is where that window is applied and whether the buyer can see it. Some suppliers quote installed energy and separately state the usable window. Others quote usable energy directly, with the reservation already taken. Both are honest; they are simply different bases. An owner who applies a standard percentage deduction to a quoted number without establishing which basis it is on will be wrong in one direction or the other, and the error is of the same order as the differences between competing bids.



Two further reservations are worth asking about explicitly, because they sit inside the usable window and reduce what is actually dispatchable. Systems providing frequency response or reserve services need state-of-charge headroom in both directions to respond, which is an operational reservation the energy model must reflect. And some control strategies reserve capacity for state-of-charge management, so that the system can return to a target state between events. Neither appears on a datasheet.


7. Degradation Is a Curve, Not a Percentage

Presenting degradation as a single percentage is the most consequential simplification in the popular treatment, because degradation is the variable that determines whether the asset performs over its life and it is the one most sensitive to how the asset is used.


Capacity fade has two components. Calendar fade proceeds with time and is driven principally by temperature and by the state of charge at which the cells are held. Cycle fade proceeds with energy throughput and is driven by depth of discharge, rate, and again temperature. The two are not additive in a simple way, and the resulting curve is characteristically steep in the first year and shallower thereafter.


The consequence for procurement is that a degradation figure is meaningless without the duty cycle it assumes. A guarantee premised on one full cycle per day at moderate temperature describes a different asset from the same equipment operated at two cycles per day in a hot climate, and the second case will not be covered by the first warranty. Every lithium warranty contains throughput or cycle limits, and exceeding them is the most common way an owner discovers the guarantee no longer applies.


Questions that separate a real guarantee from a marketing figure


What duty cycle does the guaranteed capacity assume — cycles per year, depth of discharge, average and maximum rate, temperature profile?


What are the annual and cumulative throughput limits, and what happens commercially if operation exceeds them?


Is the guarantee a capacity level in each year, or a single end-of-term level? Is it measured, or calculated from a model?


What is the remedy if a measured test falls short — augmentation, liquidated damages, or replacement — and on whose schedule?


8. Augmentation Versus Oversizing

Because capacity falls with time, holding a contracted capacity for a twenty-year term requires either starting with surplus or adding capacity later. Both strategies are legitimate and they have different engineering and commercial profiles.


Oversizing installs more capacity at the outset than the contract requires, so that the degraded capacity still meets the obligation in the final year. It is simple, it avoids future construction, and it means paying at the start for capacity that sits unused for years — and, because the cells are held at a state of charge and temperature the whole time, calendar fade proceeds on equipment that is not earning.


Augmentation adds capacity at planned intervals. It defers capital, it captures falling battery prices, and it introduces obligations the design must anticipate: physical space and foundations for future enclosures, electrical capacity in the collector system and auxiliary supply, thermal and fire separation distances that satisfy the applicable requirements, control system provision for mixed vintages, and — the one most often missed — the technical consequences of connecting new cells alongside aged ones with different impedance and capacity characteristics.


Whichever strategy is chosen, it should be visible in the electrical design from the first drawing set. Retrofitting augmentation capacity into a plant laid out without it is expensive, and discovering at year seven that the collector system has no spare positions is a familiar outcome.


9. Temperature: What It Actually Affects

Temperature appears in the popular loss stack as a flat energy deduction, which is the least accurate way to represent it. In a thermally managed system its effects are real but they act through different mechanisms.


  • Auxiliary consumption. The thermal management system is the dominant auxiliary load, and its energy use is a strong function of ambient temperature and of the heat the cells generate while cycling. A hot site with heavy cycling can consume several times the auxiliary energy of a mild site with light cycling.
  • Available power. At temperature extremes the management system derates charge and discharge power to protect the cells. That affects the ability to deliver rated power, which for a duration-based product is equivalent to affecting the deliverable energy in the window it matters.
  • Degradation rate. Sustained high cell temperature accelerates both calendar and cycle fade, so temperature enters the capacity question through the degradation curve rather than as an independent deduction.
  • Capacity measurement. Measured capacity varies with temperature, which is why a capacity test procedure must state the reference temperature and the correction method. A test performed on a cool morning and a test performed on a hot afternoon are not comparable results.


The design consequences follow: thermal management capacity sized for the actual site extremes rather than a standard rating, auxiliary supply sized for the resulting load, and the energy model reflecting the site’s temperature profile rather than a reference condition.


10. Conversion Losses and Round-Trip Efficiency

The popular stack shows a conversion loss on discharge. That is correct as far as it goes and it is not the number that matters commercially, because energy has to be put in before it can be taken out.


Round-trip efficiency is the ratio of energy delivered on discharge to energy taken on charge, and where it is measured determines what it includes. A direct-current round trip through the cells is high. Adding two passes through the power conversion system, two passes through the inverter step-up transformer and the collector system, and the auxiliary energy consumed during charge, discharge and idle produces a considerably lower figure at the revenue meter. For contemporary lithium iron phosphate systems with liquid thermal management, alternating-current round-trip efficiency measured at the point of interconnection typically lands well below the direct-current figure, and the gap is where the arbitrage margin goes.


Three details make published efficiency figures difficult to compare.


  • The measurement point, as above.
  • The operating power. Converter efficiency varies with loading and is usually quoted near its optimum. A system that spends its life at partial load does not achieve the quoted figure.
  • Whether auxiliary energy is included, and whether idle auxiliary consumption between cycles is counted. For a system that cycles rarely, idle auxiliary energy can be a large fraction of throughput even though it is small in absolute terms.


For an owner, the practical requirement is to specify round-trip efficiency at the revenue meter, at a stated power level and duty cycle, including auxiliary consumption — and to require it to be demonstrated by test rather than warranted on a datasheet.


11. Auxiliary Load and the Metering Boundary

Auxiliary load is thermal management, the battery management system, controls, communications, fire detection and suppression, lighting, and any pumps or fans in the plant. Its magnitude depends on climate and duty, and its treatment depends on a decision that is commercial as much as electrical.


Where auxiliary load is supplied from the plant side of the revenue meter, it reduces the energy that reaches the meter and it is the supplier’s and owner’s problem in the way the loss stack implies. Where it is supplied from a separate station service arrangement on the utility side, it appears as a load rather than as a reduction in delivered energy, and it is billed at retail rather than netted against wholesale sales. The two arrangements produce materially different economics and materially different guarantee language, and the choice is frequently made by default during design.



Two further practical points deserve attention. Auxiliary consumption continues when the plant is not cycling, so a system dispatched rarely still consumes; the energy model must include idle consumption over the full year rather than as a percentage of throughput. And auxiliary supply reliability is a plant availability issue — loss of thermal management does not merely reduce efficiency, it takes the plant offline, which makes the auxiliary supply arrangement and its backup a design decision rather than an afterthought.


12. Duty Cycle, Rate, and Throughput Limits

The duty cycle is the specification that ties everything above together, and it is frequently the least defined element of a storage procurement.


Discharge rate affects deliverable energy. A system discharged at a high rate delivers somewhat less than the same system discharged slowly, through internal resistance losses and voltage effects; the magnitude is modest for lithium iron phosphate but it is not zero, and a duration guarantee is only meaningful at a stated power. Rate also affects heat generation and therefore auxiliary consumption and degradation.


Cycle count and depth of discharge drive cycle fade. Two full cycles a day is not twice the degradation of one, and shallow cycling is disproportionately gentler than the throughput alone suggests. That is why warranties are expressed with both an annual cycle or throughput limit and a depth-of-discharge basis.


The failure mode is a mismatch between the duty the asset is contracted to perform and the duty the warranty assumes. A system procured for daily energy shifting and then dispatched heavily for ancillary services may accumulate throughput far faster than the warranty contemplated. The remedy is to define the intended duty in the technical specification, to require the guarantee to be premised on it, and to monitor actual throughput against the warranted limits from day one rather than discovering the divergence at a claim.


13. Availability and Energy Over a Year

Everything to this point concerns what the system can deliver when it is working. Delivered energy over a period also depends on whether it is working, and availability is a separate guarantee with its own definitions and its own room for ambiguity.


The questions that matter are what counts as available — full capacity, or any capacity at all — how partial availability is treated when some enclosures are out of service, whether scheduled maintenance is excluded, how force majeure and grid-caused outages are handled, and what the remedy is. A system with a high energy guarantee and a weak availability guarantee can deliver less than one with the reverse.



For an owner’s model, the useful discipline is to build delivered energy from the bottom up — capacity in the relevant year, at the metering point, net of auxiliary, multiplied by the dispatch profile, multiplied by availability — rather than applying a single loss factor to nameplate. The bottom-up build makes each assumption visible and each one negotiable.


14. What to Compare Between Bids

Bids arrive on different bases. Normalising them is a defined exercise, and the following are the parameters that must be fixed before any comparison means anything.


  1. Capacity basis: installed, usable at beginning of life, or guaranteed — stated explicitly for every number in every document.
  2. Measurement point: battery terminals, converter terminals, or revenue meter, with auxiliary treatment stated.
  3. Contract year: capacity in year one, in the middle year, and in the final year, not a single figure.
  4. Duty cycle: cycles per year, depth of discharge, charge and discharge rates, and the temperature profile assumed.
  5. Throughput limits: annual and cumulative, with the consequence of exceeding them.
  6. Round-trip efficiency: at the revenue meter, at a stated power, including or excluding auxiliary and stated which.
  7. Auxiliary load: expected annual consumption at the site’s temperature profile and the intended duty, and which side of the meter supplies it.
  8. Capacity maintenance strategy: oversizing, augmentation, or a combination, with augmentation scope, timing, and cost stated and with the design provisions it requires identified.
  9. Availability guarantee: definition, exclusions, measurement, and remedy.
  10. Test regime: acceptance test at commercial operation and periodic tests thereafter, with procedure, reference conditions, correction method, and remedy for a shortfall.



Expressed on a common basis, the comparison becomes cost per guaranteed megawatt-hour delivered at the metering point in the relevant years — and the ranking frequently changes from the ranking on headline price.


15. Testing and Verification

A guarantee that is never tested is a marketing statement with a signature on it. The verification regime should be specified before contract, not negotiated afterwards.


  • Capacity test. A discharge from the defined full state to the defined empty state at a stated power, measured at the contract point, with ambient and cell temperature recorded and a defined correction to reference conditions. The procedure, including how full and empty are determined, must be agreed in advance because it materially affects the result.
  • Round-trip efficiency test. A complete charge and discharge measured at the contract point, with auxiliary energy measured over the whole test period including any idle time, at a stated power.
  • Auxiliary consumption measurement. Separately metered and recorded across a range of ambient conditions and duty states, because a single measurement on a mild day tells you nothing about the annual figure.
  • Response and power tests. Verification that the system can deliver rated power across the state-of-charge range and at the temperature extremes, since a capacity test alone does not demonstrate it.
  • Periodic re-test. An annual or biennial capacity test on the same procedure, which is what converts a degradation guarantee from an assertion into an obligation with a measurement behind it.
  • Data retention. The test records are the evidence for every subsequent claim, and they are also the baseline against which a later dispute about duty cycle or throughput is resolved.



Recognised measurement and test methods exist for storage system performance parameters and should be referenced in the specification rather than each party proposing its own. Where a project-specific procedure is necessary, it should be written and agreed during procurement, when both parties still have leverage.


16. Reading the Graphic Correctly

The lesson at the bottom is the right one


Never comparing on nameplate alone, and comparing instead on energy guaranteed at the point of connection, is exactly correct and is the most useful sentence in any of these summaries. The rest of this paper is an expansion of it.


The percentages are not a template


The specific figures in any illustrative stack are one plausible set for one configuration. Applying them to a different product, climate, or duty produces a number with false precision. The value of the stack is the list of things to ask about, not the arithmetic.


Some of the deductions may already be inside the number


If the quoted nameplate is usable energy — common for current lithium iron phosphate products — then applying a further state-of-charge deduction subtracts the same reservation twice. Establish the basis before deducting anything.


Temperature is not a flat energy haircut


In a thermally managed system, temperature acts mainly through auxiliary consumption, through power derating at extremes, and through the degradation rate. Deducting it as an independent energy percentage and then separately deducting auxiliary load counts part of the same effect twice.


Conversion loss is not round-trip efficiency


The stack shows a one-way discharge loss. The commercially meaningful figure is round-trip efficiency at the revenue meter including auxiliary energy, which is a different and lower number, and it is where arbitrage margin is actually won or lost.


Degradation is not a number


It is a curve, its shape depends on the duty cycle, and the contractual question is what capacity is guaranteed in which year under which duty, with what throughput limits and what remedy. A single percentage cannot express that.


Two things are missing entirely


The measurement point, which changes every figure downstream of it and is the most common source of bid comparison error; and availability, which determines delivered energy over a period regardless of how much the system can deliver when running.


17. Keentel Electrical Power Engineering Services

Keentel Engineering supports storage projects from technical specification through interconnection and commissioning, on the engineering questions that decide whether the asset performs as procured.


17.1 Owner’s Engineer and Technical Due Diligence


  • Bid normalisation: restating competing proposals on a common capacity basis, measurement point, duty cycle and contract year so that they can actually be compared.
  • Technical specification development covering capacity basis, guarantee structure, measurement point, duty cycle, throughput limits, auxiliary boundary, augmentation strategy, and test regime.
  • Performance guarantee and warranty technical review, including the assumptions the guarantee is premised on and the design provisions the capacity maintenance strategy requires.
  • Design review of EPC and vendor submittals and QA/QC of third-party study and model packages.


17.2 Electrical Design


  • Collector system, medium-voltage distribution, and point-of-interconnection design with electrical provision for the augmentation strategy built in from the first drawing set.
  • Auxiliary power system design and load assessment across the site temperature profile and intended duty, including supply arrangement, metering boundary, and backup.
  • Transformer and conversion equipment specification including converter-duty considerations and loss evaluation.
  • Grounding, bonding, and lightning protection design, and substation design.


17.3 Power System Studies and Interconnection


  • Interconnection application support, study-phase technical packages, and coordination with the utility, transmission provider, and system operator.
  • Short-circuit, protective coordination and selectivity, and arc-flash studies with inverter-based resources represented as current-limited sources.
  • Load flow, reactive capability, harmonic and power quality studies, grid strength assessment, and transient stability analysis.
  • Electromagnetic transient modelling for control interaction, weak-grid stability, ride-through verification, and switching and overvoltage transients.
  • Effective grounding and ground fault overvoltage assessment at the point of interconnection.


17.4 Commissioning, Compliance, and Performance


  • Commissioning specification and test procedure development including capacity, round-trip efficiency, auxiliary consumption, and power capability tests, with reference conditions and correction methods defined.
  • Witness testing, performance test evaluation, and independent assessment where measured results fall short of guarantee.
  • NERC compliance support including model verification and validation, ride-through and disturbance monitoring obligations, and protection and control coordination.


Keentel Engineering holds a Florida Certificate of Authorization and maintains offices in Tampa, Austin, Sacramento, and Baltimore, supporting projects across the interconnections.


18. Frequently Asked Questions

Because the headline number is usually a different quantity from the energy that crosses the revenue meter. Between them sit the operating window the management system enforces, capacity lost to degradation by the relevant contract year, conversion and transformer losses, and the plant’s own auxiliary consumption. How much each takes depends entirely on the product, the site, and the duty.

Guaranteed energy, at the contract measurement point, at reference temperature, under the specified duty cycle, in a specified contract year, net of auxiliary load — with the availability guarantee stated separately. Anything less specific cannot be compared between bids.

Installed energy is the sum of cell capacity as manufactured. Usable energy is what the management system permits to be withdrawn at beginning of life. Guaranteed energy is a commercial commitment about what will be available in a stated year under stated conditions. All three are legitimate descriptions and all three are different numbers.

Because every loss sits between two points. A figure at the battery direct-current terminals excludes conversion, transformer and collector losses and usually excludes auxiliary consumption. The same system measured at the revenue meter is a materially smaller number. A guarantee without a named measurement point is not enforceable in any useful way.

At the revenue metering point, with auxiliary treatment stated explicitly. That places conversion, transformer and cable losses inside the supplier’s scope to manage, which is where the incentive belongs, and it is the point where energy is actually sold.

No, and it is a common way to be wrong. If the quoted number is already usable energy, applying a further state-of-charge deduction subtracts the same reservation twice. Establish what basis the number is quoted on before deducting anything from it.

Operating to the absolute limits accelerates degradation sharply and, at the top of the range, raises safety risk. Every system therefore operates within a managed window. What varies is whether that window is already reflected in the quoted capacity.

Frequently. Systems providing frequency response or reserve need state-of-charge headroom in both directions to respond, and some control strategies reserve capacity to return to a target state between events. Neither appears on a datasheet, and both reduce what is actually dispatchable for energy purposes.

Because it is a curve with two components. Calendar fade proceeds with time, driven by temperature and the state of charge at which cells are held. Cycle fade proceeds with throughput, driven by depth of discharge, rate and temperature. The curve is steep in year one and shallower after, and its shape depends on how the asset is used.

The duty cycle it assumes. A guarantee premised on one full cycle per day at moderate temperature describes a different asset from the same equipment at two cycles per day in a hot climate. Ask what cycles per year, depth of discharge, rate and temperature profile the guarantee assumes, and what the annual and cumulative throughput limits are.

Exceeding the throughput or cycle limits. A system procured for daily energy shifting and then dispatched heavily for ancillary services accumulates throughput far faster than the warranty contemplated. Monitor actual throughput against warranted limits from day one rather than discovering the divergence at a claim.

Both are legitimate. Oversizing is simple and avoids future construction, but pays at the start for capacity that sits unused while still ageing. Augmentation defers capital and captures falling prices, but requires space, foundations, collector and auxiliary capacity, fire separation, control provision for mixed vintages, and management of the interaction between new and aged cells.

Spare collector positions, cable and transformer capacity, auxiliary supply headroom, physical space and foundations, separation distances that satisfy the applicable requirements, and control system provision. All of it needs to be in the design from the first drawing set — retrofitting it at year seven is expensive and sometimes impossible.

Not in a thermally managed system. Temperature acts mainly through auxiliary consumption, which rises substantially in hot conditions; through power derating at extremes; and through the degradation rate. Deducting a flat energy percentage for temperature and then separately deducting auxiliary load counts part of the same effect twice.

Conversion loss is one way. Round-trip efficiency is energy out divided by energy in, so it includes both passes through the converter and transformers plus the auxiliary energy consumed during charge, discharge and idle. It is a considerably lower number, and it is where arbitrage margin is won or lost.

Three reasons: the measurement point, the operating power at which it was measured, and whether auxiliary energy is included. Converter efficiency is usually quoted near its optimum loading, and a system operating at partial load will not achieve it.

It depends on climate and duty, with thermal management dominant. A hot site with heavy cycling can consume several times the auxiliary energy of a mild site with light cycling. Critically, consumption continues when the plant is idle, so the annual figure must be built from the full year rather than taken as a percentage of throughput.

Considerably. Fed from the plant side, it reduces energy reaching the meter. Fed from a separate station service arrangement, it appears as a load billed at retail rather than netted against wholesale sales. The economics and the guarantee language differ, and the choice is often made by default during design.

Yes. Loss of thermal management does not merely reduce efficiency — it takes the plant offline. The auxiliary supply arrangement and its backup are an availability design decision, not an afterthought.

Somewhat. Higher rates deliver slightly less through internal resistance and voltage effects, modest for lithium iron phosphate but not zero, and they generate more heat, which increases auxiliary consumption and degradation. A duration guarantee is only meaningful at a stated power.

As a separate guarantee with its own definitions: what counts as available, how partial availability is treated, whether scheduled maintenance is excluded, how grid-caused outages are handled, and what the remedy is. A system with a strong energy guarantee and a weak availability guarantee can deliver less than one with the reverse.

From the bottom up: capacity in the relevant year, at the metering point, net of auxiliary, multiplied by the dispatch profile, multiplied by availability. Applying a single loss factor to nameplate hides every assumption. The bottom-up build makes each one visible and each one negotiable.

A capacity test and a round-trip efficiency test at the contract point at commercial operation, auxiliary consumption measured across a range of conditions, power capability verified across the state-of-charge range and at temperature extremes, and periodic re-tests thereafter on the same procedure. Specify the procedure, reference conditions, correction method and remedy before contract, not after.

Because how full and empty are determined, at what power the discharge runs, and how the result is corrected for temperature all materially affect the number. Two defensible procedures can produce different answers on the same equipment, and the time to resolve that is while both parties still have leverage.

Require every capacity figure in every document to carry its basis and its measurement point in the same sentence, and require the guarantee to be expressed as energy at the revenue meter in named contract years under a named duty cycle. Most disappointing storage assets are not badly built — they were bought against a number that did not mean what the buyer assumed.


References and Further Reading

The following are referenced by subject in the body of this document. The current published edition of each standard governs its own requirements, and the specific manufacturer data and contract terms govern any project decision.


Performance, Parameters, and Testing


  • IEC 62933-2-1, Electrical energy storage systems — Unit parameters and testing methods, and the related parts of the IEC 62933 series covering terminology, planning, safety and environmental requirements  —  International Electrotechnical Commission
    https://webstore.iec.ch/
  • IEEE Std 1679, Recommended Practice for the Characterization and Evaluation of Energy Storage Technologies in Stationary Applications, and IEEE Std 1679.1 for lithium-based energy storage  —  IEEE Standards Association
    https://standards.ieee.org/
  • IEEE Std 2030.2.1, Guide for Design, Operation, and Maintenance of Battery Energy Storage Systems, Both Stationary and Mobile, and Applications Integrated with Electric Power Systems  —  IEEE Standards Association
    https://standards.ieee.org/
  • US Department of Energy protocol for uniformly measuring and expressing the performance of energy storage systems, developed through the national laboratories — a widely referenced basis for capacity, efficiency and response testing  —  US Department of Energy / Sandia National Laboratories
    https://www.sandia.gov/ess/


Safety and Installation


  • UL 9540, Standard for Energy Storage Systems and Equipment, and UL 9540A, Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems  —  UL Standards & Engagement
    https://www.shopulstandards.com/
  • NFPA 855, Standard for the Installation of Stationary Energy Storage Systems — including separation and spacing requirements relevant to augmentation planning  —  National Fire Protection Association
    https://www.nfpa.org/
  • NFPA 70, National Electrical Code — including the articles addressing energy storage systems and their disconnecting means, overcurrent protection and working space  —  National Fire Protection Association
    https://www.nfpa.org/


Interconnection and Grid Performance


  • IEEE Std 2800, Standard for Interconnection and Interoperability of Inverter-Based Resources Interconnecting with Associated Transmission Electric Power Systems  —  IEEE Standards Association
    https://standards.ieee.org/ieee/2800/10453/
  • IEEE Std 1547, Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces, where the installation is distribution-connected  —  IEEE Standards Association
    https://standards.ieee.org/
  • IEEE Std 519, Standard for Harmonic Control in Electric Power Systems, and IEEE Std 3002.8 for harmonic studies  —  IEEE Standards Association
    https://standards.ieee.org/
  • NERC Reliability Standards — including model verification and validation obligations and the ride-through and disturbance monitoring requirements applicable to inverter-based resources  —  North American Electric Reliability Corporation
    https://www.nerc.com/pa/Stand/Pages/ReliabilityStandards.aspx

Notice and Disclaimer

This document is original technical content prepared by Keentel Engineering LLC for general professional information. It is not project-specific engineering advice, commercial advice, or legal advice, and it does not constitute a technical specification, a performance assessment, or a contract review for any project. Capacity, efficiency, degradation and availability commitments must be established from the specific manufacturer data and the specific contract terms applicable to a project.


Capacity definitions, loss mechanisms, and comparative relationships described here are general engineering discussion. Any numerical relationships used are illustrative and demonstrate the method rather than describing any product. Actual performance varies with cell chemistry, product design, thermal management, site conditions, duty cycle, and system configuration, and must be taken from the manufacturer data and test results for the equipment under consideration.



Keentel Engineering LLC is an independent engineering consultancy. Reference to any standard, code, industry organisation, regulator, or equipment category in this document does not imply affiliation with, endorsement by, or sponsorship from any such organisation or manufacturer.



A smiling man with glasses and a beard wearing a blue blazer stands in front of server racks in a data center.

About the Author:

Sandip "Sonny" R. Patel, P.E.

IEEE Senior Member · Founder & CEO, Keentel Engineering

In 1995, Sonny Patel earned his Electrical Engineering degree from the University of Illinois. But degrees don't build legacies — action does.

For three decades, he has worked the power industry from every side of the table: 16 years as a utility engineer at Exelon/Commonwealth Edison; generation leadership across hydroelectric, industrial steam turbine, and a 9 GW renewable fleet; NERC Regional Entity Senior Compliance Engineer and Audit Team Lead, auditing some of the nation's largest utilities; and testing and commissioning lead on equipment up to 765 kV — the very top of the North American grid.

Utility. Generator. Regulator. Consultant. Few engineers have seen all four seats. Fewer still have sat in them.His experience spans nuclear, hydro, conventional generation, renewables, oil and gas, mining — and today's data centers, where he is authoring a three-book series on data center design. He is a Licensed Professional Engineer in six states and a Licensed Electrical Contractor in Florida (Unlimited EC) — he doesn't just design the work; he's qualified to stand behind its execution.Today, as Founder and CEO of Keentel Engineering, Sonny leads 51 engineers delivering substation design, power system studies, NERC compliance, and commissioning — done right, coast to coast.Three decades. Every side of the table. One standard: accountable engineering

Four workers in safety vests and helmets stand with arms crossed near wind turbines.

Let's Discuss Your Project

Let's book a call to discuss your electrical engineering project that we can help you with.

Man in a blazer and open shirt, looking at the camera, against a blurred background.

About the Author:

Sandip "Sonny" R. Patel, P.E.

IEEE Senior Member · Founder & CEO, Keentel Engineering

In 1995, Sonny Patel earned his Electrical Engineering degree from the University of Illinois. But degrees don't build legacies — action does.

For three decades, he has worked the power industry from every side of the table: 16 years as a utility engineer at Exelon/Commonwealth Edison; generation leadership across hydroelectric, industrial steam turbine, and a 9 GW renewable fleet; NERC Regional Entity Senior Compliance Engineer and Audit Team Lead, auditing some of the nation's largest utilities; and testing and commissioning lead on equipment up to 765 kV — the very top of the North American grid.Utility. Generator. Regulator. Consultant. Few engineers have seen all four seats. Fewer still have sat in them.His experience spans nuclear, hydro, conventional generation, renewables, oil and gas, mining — and today's data centers, where he is authoring a three-book series on data center design. He is a Licensed Professional Engineer in six states and a Licensed Electrical Contractor in Florida (Unlimited EC) — he doesn't just design the work; he's qualified to stand behind its execution.Today, as Founder and CEO of Keentel Engineering, Sonny leads 51 engineers delivering substation design, power system studies, NERC compliance, and commissioning — done right, coast to coast.Three decades. Every side of the table. One standard: accountable engineering

Leave a Comment

Related Posts

STATCOM reactive power output versus system voltage compared with capacitor and SVC performance
By SANDIP R PATEL September 3, 2026
Learn how a STATCOM provides dynamic reactive power and voltage support, how it compares with SVCs and capacitors, and how engineers size it for weak grids.
Power system protection schemes from generator to load showing overlapping protection zones
By SANDIP R PATEL September 1, 2026
Learn power system protection schemes from generator to load, including protection zones, relay coordination, device numbers, backup protection, and settings.
PRC-029-1 compliance deadlines and enforcement discretion for inverter-based resources
By SANDIP R PATEL September 1, 2026
Understand PRC-029-1 compliance deadlines, IBR ride-through requirements, R1–R4, enforcement discretion, notification rules, and owner action steps.
Zero-sequence current in an inverter-based plant showing transformer-limited ground fault current ve
By SANDIP R PATEL September 1, 2026
Learn where zero-sequence current comes from in inverter-based plants and how transformer grounding affects ground faults, overvoltage, protection, and interconnection.
VFD cable length and motor-side filtering chart comparing peak motor terminal voltage at 208V, 480V,
By SANDIP R PATEL August 31, 2026
Learn how VFD cable length, voltage class, reflected wave and motor insulation determine when to use an output reactor, dV/dt filter or sine-wave filter.
Available fault current, SCCR, and interrupting rating chart showing equipment rating and unrated fa
By SANDIP R PATEL August 29, 2026
Learn how available fault current, SCCR and interrupting ratings affect equipment safety, short-circuit studies, arc flash risk and electrical system design.
PJM data center load event showing 3,800 MW leaving the grid after a 230 kV fault
By SANDIP R PATEL August 29, 2026
Explore the 3,800 MW data center load event, why a cleared 230 kV fault triggered load transfers, and what it means for ride-through and grid reliability.
Test energy before COD in the WECC footprint showing reliability and commercial clock timeline
By SANDIP R PATEL August 28, 2026
Learn how CAISO BESS projects manage test energy before COD, including WECC modeling, EMT studies, telemetry, ride-through, registration and compliance.
Short-circuit model and inverter mismatch
By SANDIP R PATEL August 28, 2026
Learn why short-circuit models can misrepresent inverter fault behavior, negative-sequence current, protection settings, and when EMT studies are needed.
