Power System Study Case Studies

Keentel Engineering delivers advanced power system studies that solve complex grid and industrial power quality challenges. The following real-world case studies demonstrate how our expert engineers help utilities, renewable developers, and industrial operators achieve compliance, reliability, and cost-effective performance.

Each project highlights our practical engineering approach, deep technical expertise, and ability to deliver results without unnecessary equipment or project delays.

Case Study 1

Grid Interconnection & Renewable Penetration Study

Client: Confidential Renewable Developer

Region: ERCOT

Background

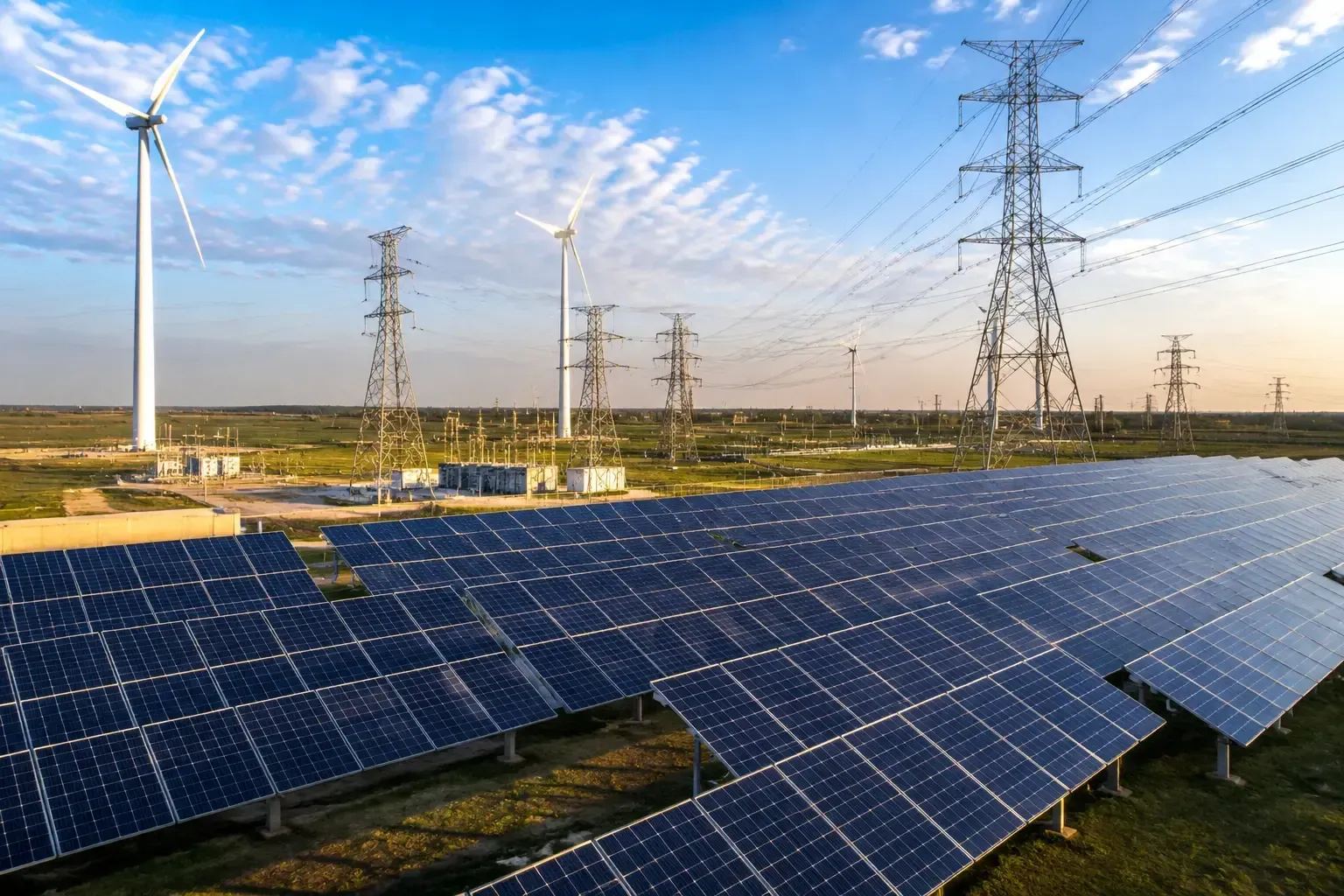

A large renewable developer planned multiple solar and wind projects within a constrained transmission corridor. The ISO required a comprehensive grid interconnection and renewable penetration assessment to evaluate system impacts under high renewable scenarios.

Engineering Challenges

• Increasing inverter-based resource (IBR) penetration
• Weak grid conditions and limited short-circuit strength
• Voltage stability and reactive power concerns
• ISO compliance requirements for planning approval

Keentel Engineering Solution

• Performed grid interconnection studies, including load flow, short-circuit, and stability analysis
• Conducted renewable penetration sensitivity studies under multiple dispatch scenarios
• Evaluated voltage stability and system strength impacts
• Provided mitigation recommendations, including reactive support and control tuning

Outcome

• ISO-approved interconnection study results
• Identified hosting capacity limits and mitigation paths
• Enabled phased renewable deployment with reduced risk

Solar & Wind Farm Electrical Design and System Studies

Client: Confidential IPP

Region: Southwest U.S.

Background

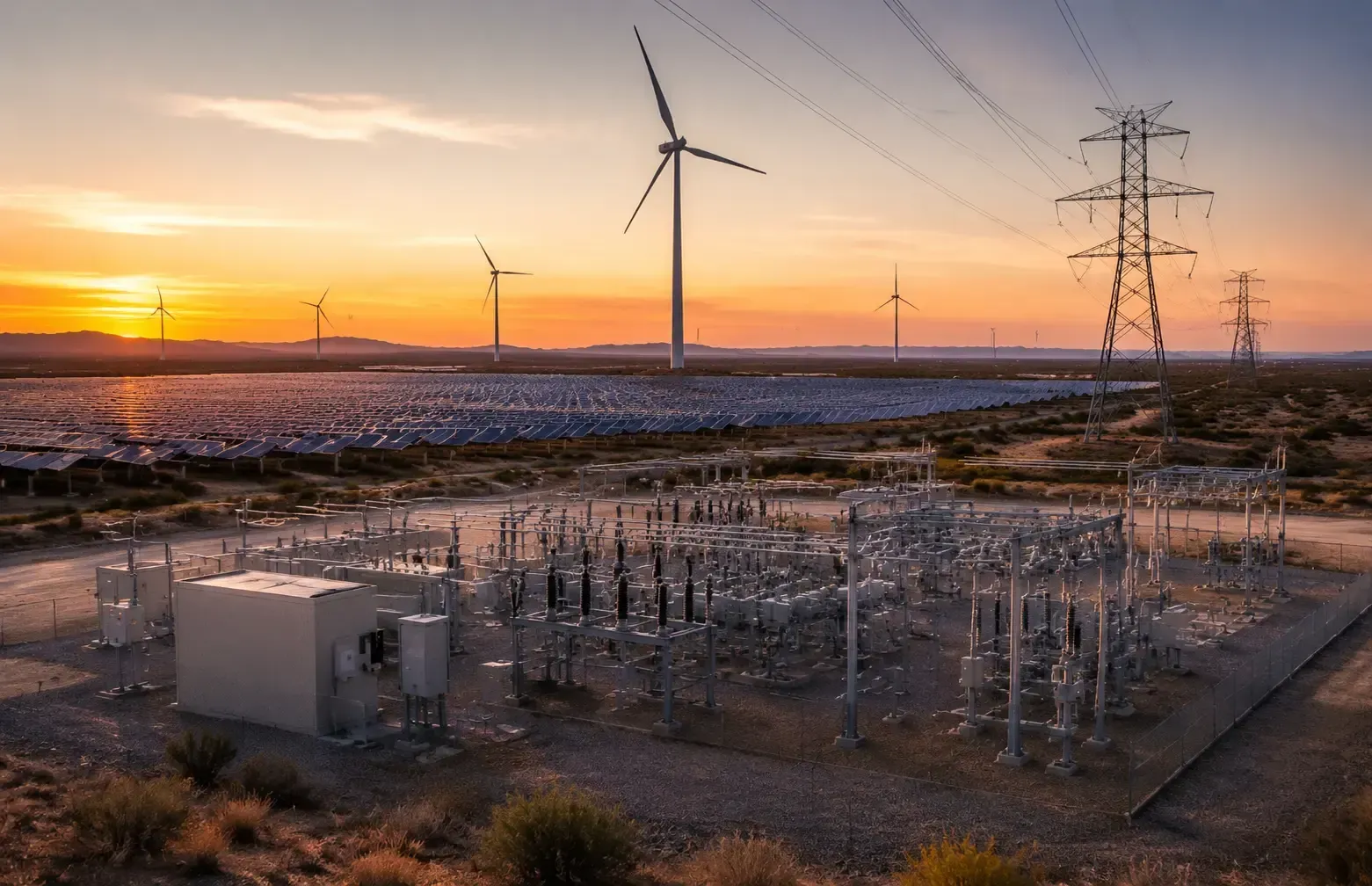

An independent power producer required full electrical design and system studies for a hybrid solar and wind facility, including collector systems, substation interface, and POI compliance.

Engineering Challenges

• Long MV collector circuits with voltage drop concerns
• Coordinating wind turbine and inverter controls
• Ensuring compliance with utility and ISO grid codes

Keentel Engineering Solution

• Designed MV collector systems and substation interfaces
• Performed load flow, short-circuit, and protection coordination studies
• Verified compliance with reactive power and ride-through requirements
• Supported utility and ISO technical reviews

Outcome

• Fully compliant electrical design package
• Optimized collector system sizing and losses
• Achieved on-time interconnection approval


Reactive Power Compensation & Capacitor Bank Optimization Study

Client: Confidential Transmission-Connected Facility

Region: MISO

Background

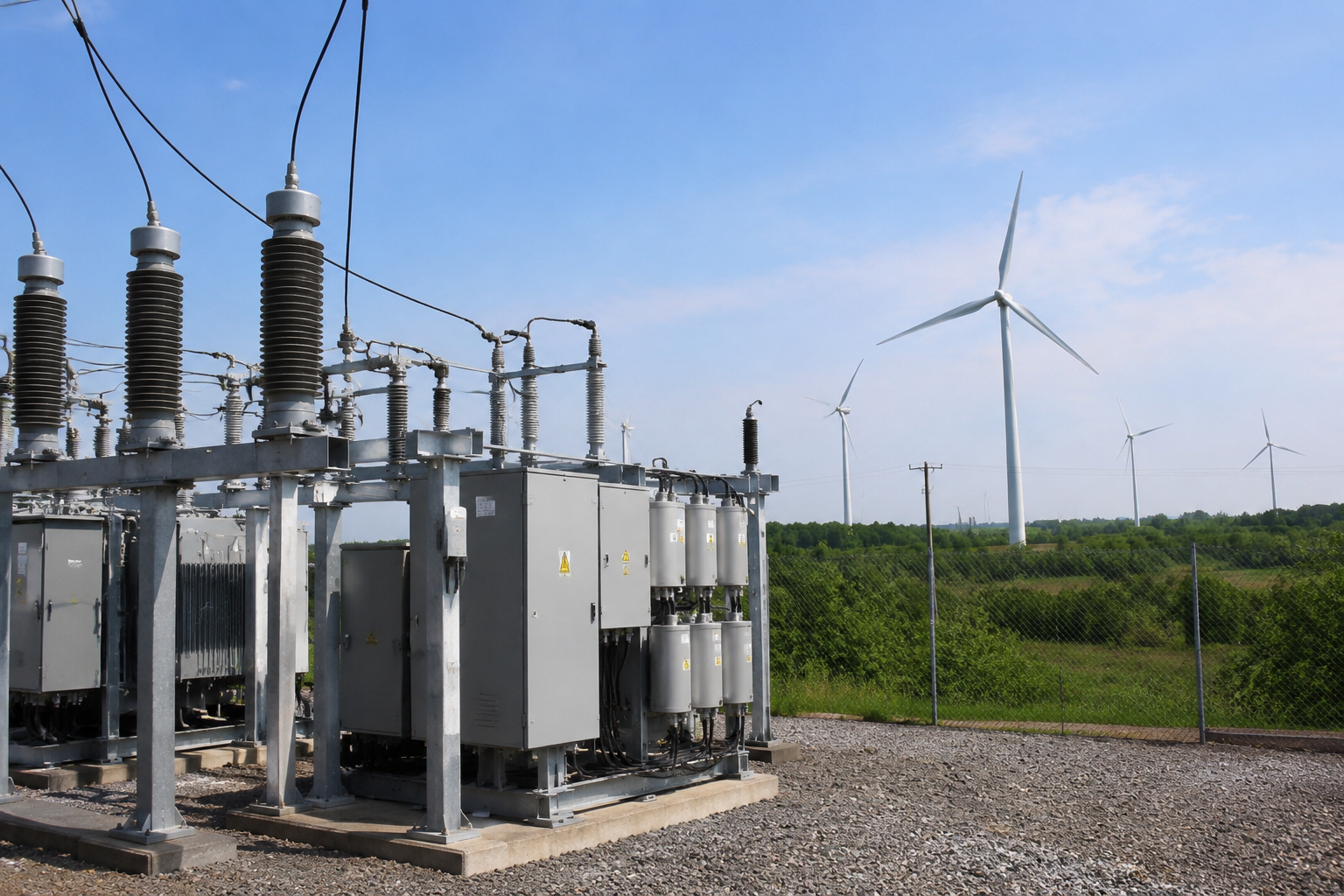

A grid-connected facility experienced voltage fluctuations and poor power factor under varying load conditions. The utility required a reactive power compensation study.

Engineering Challenges

• Voltage regulation across multiple operating conditions
• Avoiding overcompensation and resonance risks
• Minimizing capital and operational costs

Keentel Engineering Solution

• Conducted reactive power compensation studies
• Optimized capacitor bank sizing and placement
• Evaluated switched vs fixed compensation options
• Verified system performance under contingency conditions

Outcome

• Improved voltage profile and power factor compliance
• Reduced reactive power penalties
• Cost-effective and scalable compensation solution


Insulation Coordination, Lightning, TOV, and TRV Studies

Client: Confidential Utility

Region: Southeast U.S.

Background

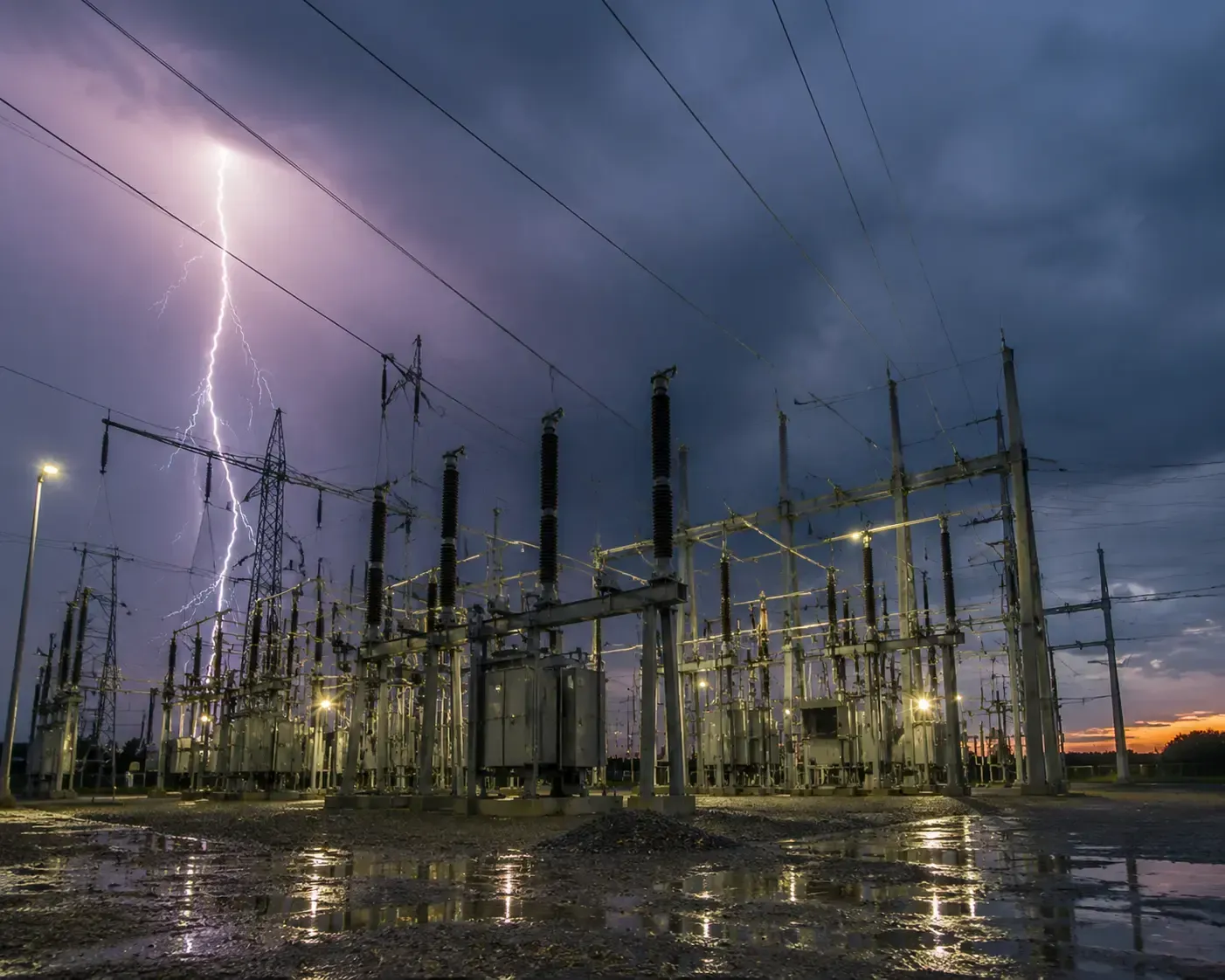

A new high-voltage substation required insulation coordination verification to ensure equipment protection against lightning, switching surges, and temporary overvoltages.

Engineering Challenges

• High lightning density region
• Equipment insulation margin optimization
• Coordination with surge arresters and breaker ratings

Keentel Engineering Solution

• Performed insulation coordination studies
• Analyzed lightning, TOV, and TRV conditions
• Verified surge arrester placement and ratings
• Ensured compliance with IEEE and utility standards

Outcome

• Reduced insulation failure risk
• Optimized equipment BIL selection
• Enhanced substation reliability and safety


Fast Front, Slow Front & GIS Very Fast Transient Studies

Client: Confidential Utility

Region: Northeast U.S.

Background

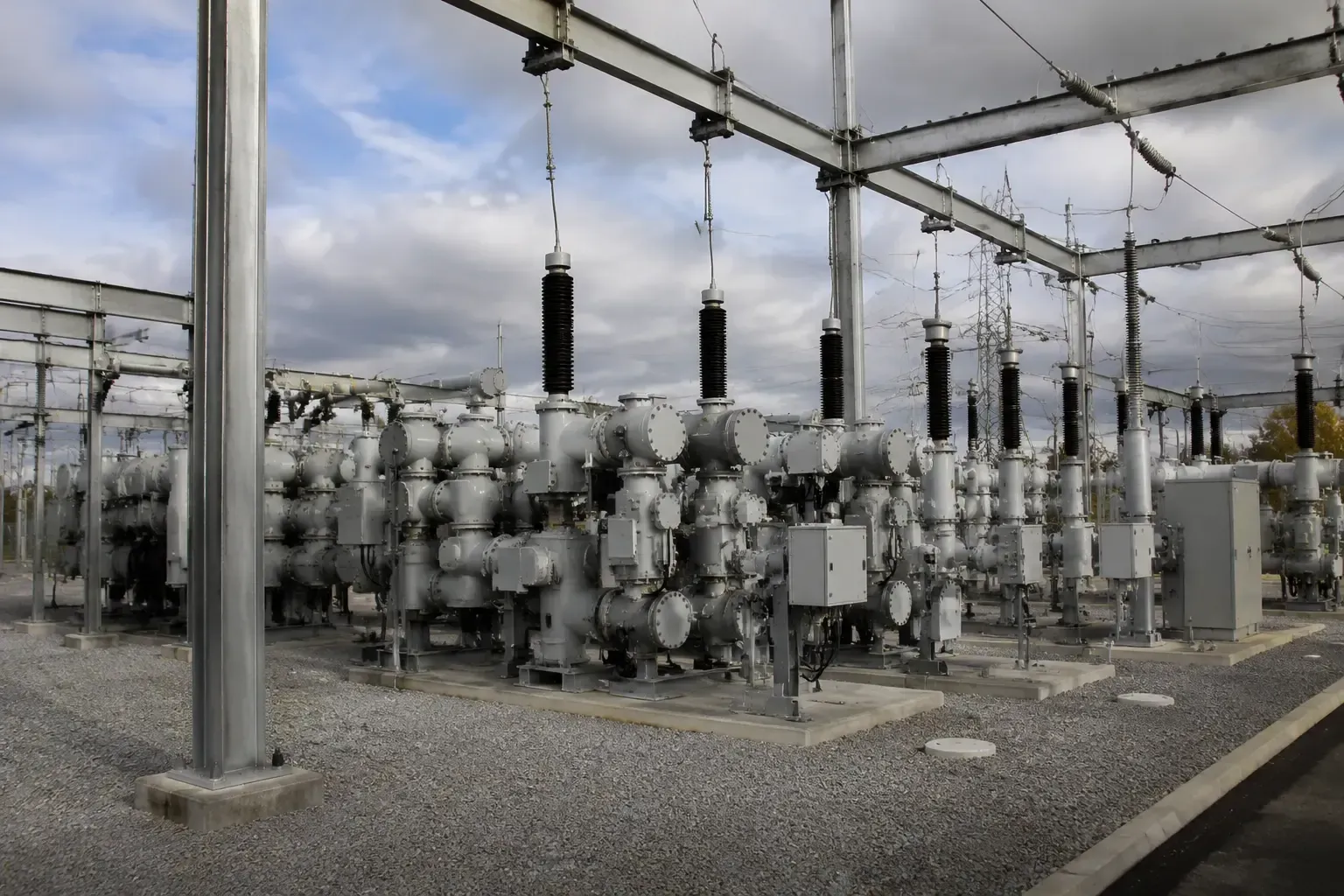

A GIS-based substation required transient analysis to address very fast front overvoltages caused by switching operations and GIS disconnector actions.

Engineering Challenges

• Space-constrained GIS environment
• Risk of VFTO affecting connected equipment
• Compliance with OEM and IEEE limits

Keentel Engineering Solution

• Performed fast-front and slow-front transient studies
• Conducted GIS Very Fast Transient Overvoltage (VFTO) analysis
• Evaluated mitigation measures such as damping resistors
• Coordinated with GIS OEM specifications

Outcome

• Verified insulation and equipment protection
• Reduced VFTO exposure risks
• Ensured long-term GIS reliability


Transformer Inrush, POI Rapid Voltage Change (RVC) & Flicker Study

Client: Confidential Renewable Facility

Region: CAISO

Background

A renewable POI experienced concerns related to transformer energization, voltage flicker, and rapid voltage changes affecting neighboring loads.

Engineering Challenges

• Large transformer inrush currents
• POI voltage flicker sensitivity
• ISO power quality compliance requirements

Keentel Engineering Solution

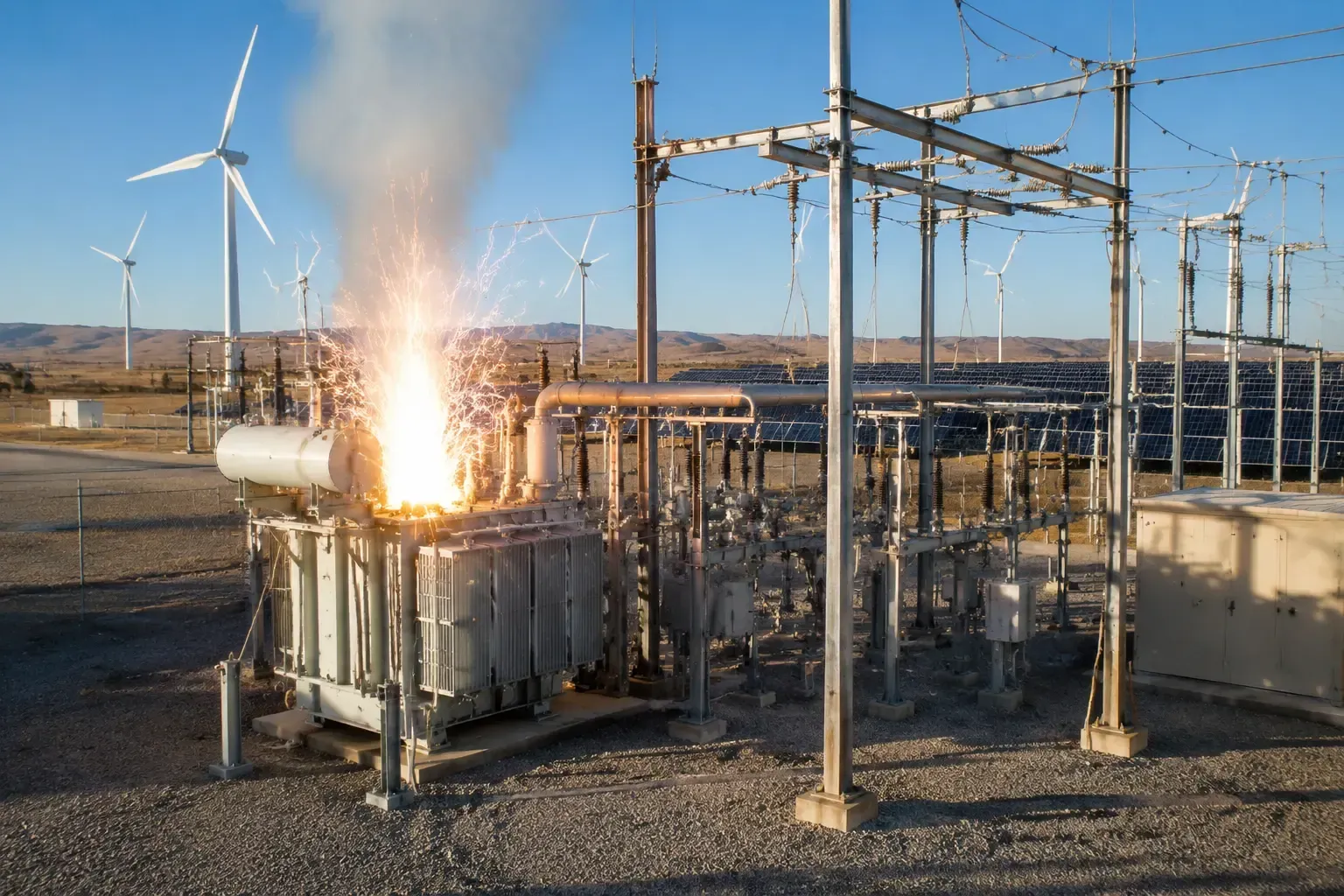

• Analyzed transformer inrush current behavior
• Performed Rapid Voltage Change (RVC) studies
• Conducted flicker and power quality analysis
• Recommended controlled energization and mitigation strategies

Outcome

• ISO-accepted power quality compliance
• Reduced flicker and voltage disturbance risk
• Improved customer and grid performance


Power, Energy Loss & Substation Layout Optimization Study

Client: Confidential Transmission Owner

Region: WECC

Background

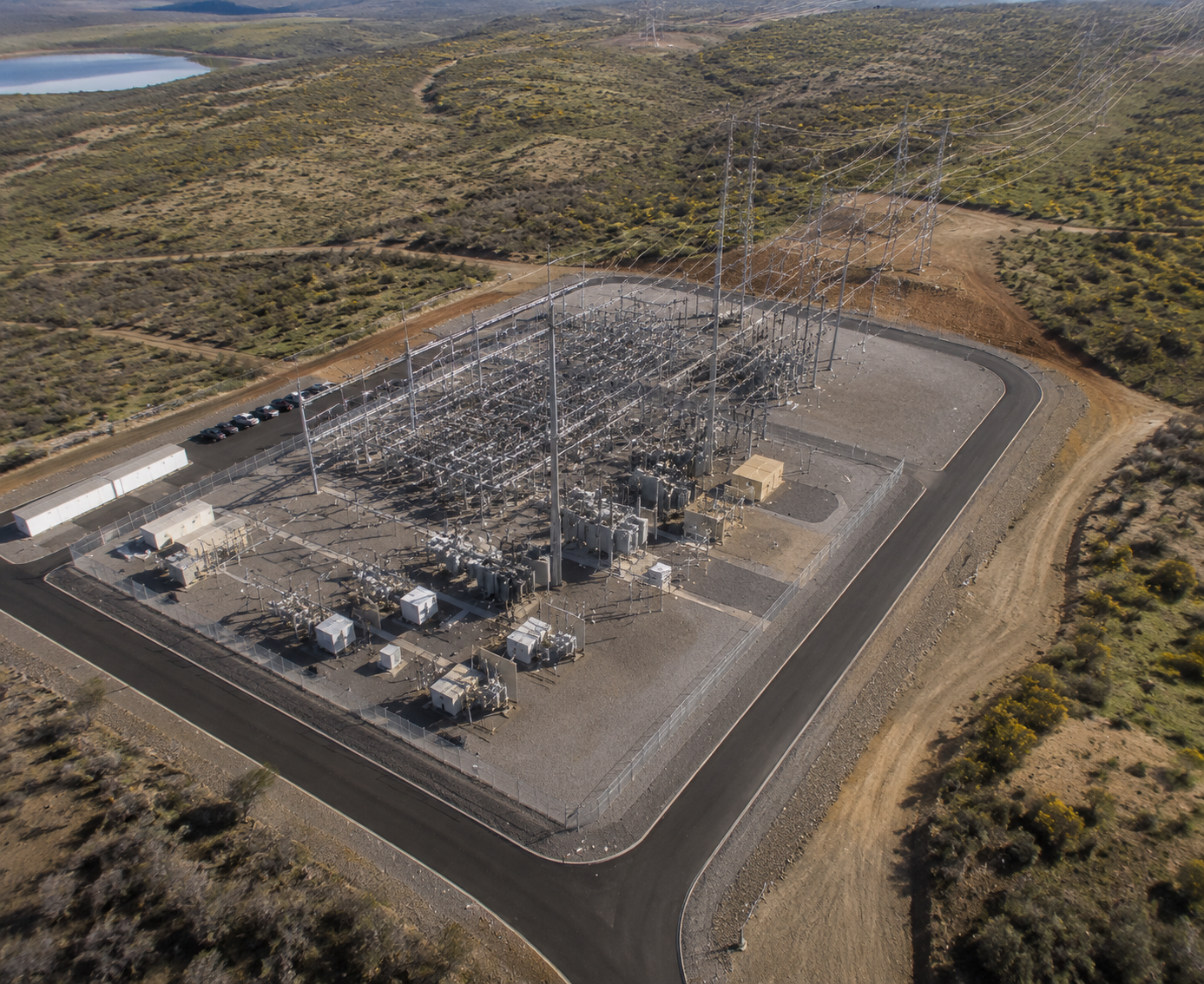

A transmission owner sought to reduce losses and optimize substation footprint while maintaining reliability and maintenance access.

Engineering Challenges

• High conductor and transformer losses
• Land use constraints
• Balancing efficiency with constructability

Keentel Engineering Solution

• Conducted power and energy loss studies
• Evaluated alternative conductor sizes and configurations
• Performed substation layout optimization analysis
• Coordinated with civil and structural teams

Outcome

• Reduced system losses and operating costs
• Optimized substation footprint
• Improved maintenance safety and access


This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Effectively Grounded System & Grounding Performance Analysis

Client: Confidential Utility

Region: Multi-State

Background

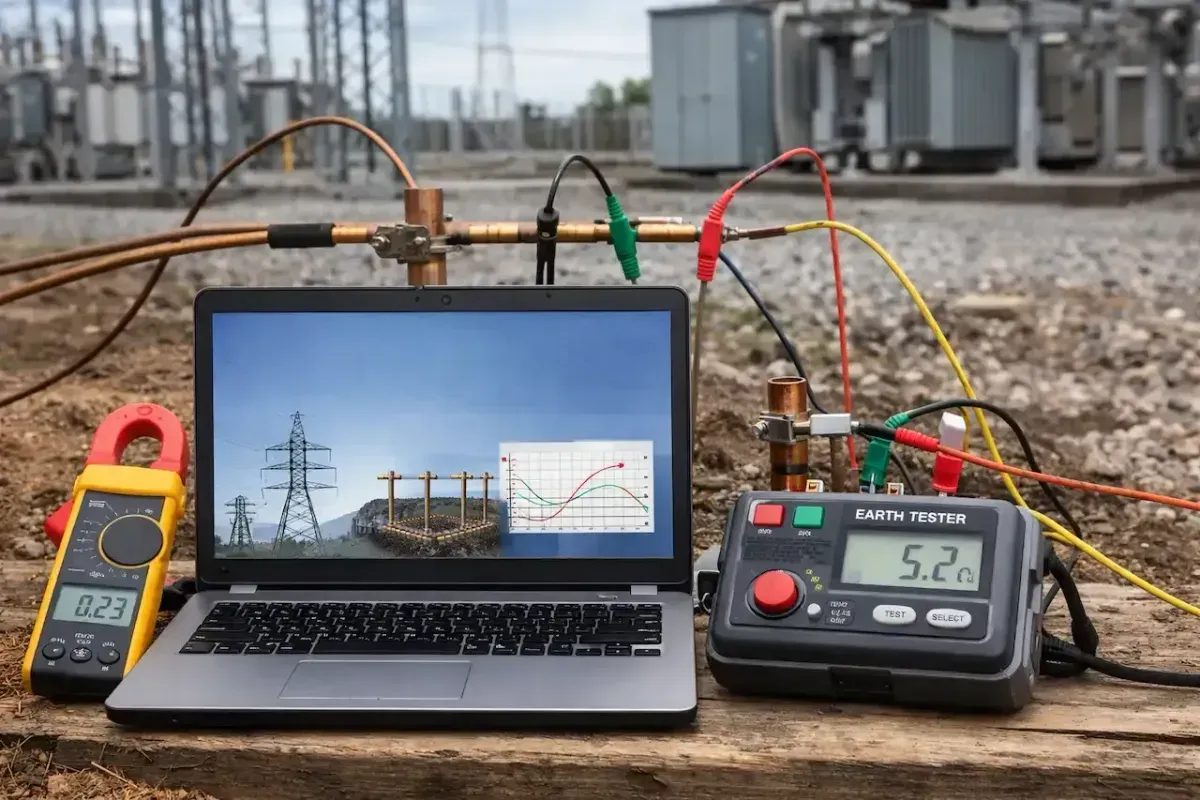

A utility required verification that its system met effectively grounded criteria to ensure proper protection coordination and equipment insulation performance.

Engineering Challenges

• Mixed grounding practices across substations
• Overvoltage and protection coordination risks
• Regulatory and IEEE compliance expectations



Keentel Engineering Solution

• Performed effectively grounded system analysis
• Evaluated zero-sequence impedance ratios
• Reviewed grounding transformer and neutral grounding designs
• Provided mitigation recommendations where required

Outcome

• Verified effective grounding compliance
• Improved protection performance and equipment life
• Reduced risk of temporary overvoltage damage
