Advanced Power System Modeling for NYISO Interconnection Studies

A Comprehensive Guide for Developers and Engineers

The rapid transformation of the power grid driven by renewable generation, battery energy storage systems (BESS), high-voltage direct current (HVDC) transmission, and electrification has made accurate power system modeling essential for interconnection studies and long-term planning. In regions such as New York, these requirements are governed by detailed modeling frameworks established by the New York Independent System Operator (NYISO).

NYISO requires rigorous modeling standards for generation and transmission projects entering the Cluster Study process to ensure system reliability, accurate planning results, and compliance with North American Electric Reliability Corporation (NERC) standards. These modeling guidelines define how developers must prepare steady-state, short-circuit, and dynamic models for proposed projects.



This article provides a deep technical overview of NYISO modeling requirements, including interconnection data requirements, modeling methodologies, planning simulations, and production cost modeling frameworks. It also highlights the tools and engineering expertise required to develop compliant models and successfully navigate the NYISO interconnection process.

The Role of Modeling in Interconnection Studies

When a generator or transmission project requests interconnection to the bulk power system, the system operator must determine whether the grid can safely accommodate the new resource.

To answer this question, engineers perform multiple studies, including:

• Power flow analysis
• Short circuit analysis
• Dynamic stability simulations
• Production cost modeling
• Capacity expansion modeling

These studies ensure that new projects will not compromise system reliability, cause equipment overloads, or create instability during disturbances.

NYISO requires detailed digital models of proposed projects so they can be integrated into system simulations used in cluster studies.

NYISO Interconnection Modeling Framework

NYISO modeling guidelines establish standardized data formats and modeling practices for new projects entering the interconnection process.

The modeling data package must include:

1. One-Line Diagram
2. Steady-State Model
3. Short Circuit Model
4. Dynamic Stability Model

These models must be compatible with specific industry software tools such as:

• PSSE (Power System Simulator for Engineering) for steady-state and dynamic simulations
• ASPEN OneLiner for short circuit analysis

The purpose is to ensure that interconnection customers provide models that are consistent with NYISO’s simulation environment.

Required Interconnection Modeling Data

1. One-Line Diagrams

The one-line diagram provides a visual representation of the electrical system configuration. It must clearly identify:

• Point of Interconnection (POI)
• Transformers
• Collector systems
• Generators
• Reactive power devices

The diagram must be a professional engineering drawing suitable for integration into planning studies.

2. Steady-State Models

Steady-state models are used for power flow studies.

NYISO requires submission of:

• RAW or SAV file representing the system configuration
• IDV file for adding the project to existing cases
• SLD file showing the electrical network layout

These models simulate system conditions such as:

:

• voltage levels
• power flows
• equipment loading
• reactive power requirements

The modeling standard requires aggregation where possible, typically representing each resource type as a single equivalent generator.

Generator Modeling Requirements

Generator models must represent both real and reactive power behavior.

Key parameters include:

Active Power Limits

• Pmax: Maximum generation output
• Pmin: Minimum operating power

For storage resources, the model must also represent charging behavior.

Reactive Capability

The generating facility must meet power factor requirements of ±0.95 at the POI or transformer high-side.

Machine Base

The model must specify the generator MVA base rating used in calculations.

Resource Types

NYISO identifies generator types using standardized machine IDs.

Examples include:

• Solar (S)
• Wind (W)
• Battery Energy Storage (E)
• Hydro (H)
• Combustion Turbine (CT)
• Combined Cycle (CC)


Transformer Modeling Requirements

Transformers are critical elements in power system studies.

NYISO requires detailed modeling of:

• Generator Step-Up (GSU) transformers
• Plant Step-Up (PSU) transformers

Required parameters include:

• resistance and reactance values
• winding ratings
• tap changer settings
• cooling ratings
• transformer vector group

The modeling must reflect the actual winding configuration and grounding scheme.

Modeling Reactive Power Devices

Reactive power support devices such as STATCOMs and SVCs play a critical role in maintaining voltage stability.

STATCOM Modeling

STATCOMs are represented using shunt FACTS device models in PSSE.



Key parameters include:

• voltage control setpoints
• reactive power capability
• remote voltage control bus

SVC Modeling

Static VAR Compensators are modeled as generators with zero real power output but reactive power capability.

Short Circuit Modeling Requirements

Short circuit studies evaluate system behavior during faults.

NYISO requires ASPEN OneLiner models including:

• generator impedance data
• transformer impedances
• transmission line parameters

For inverter-based resources such as solar or battery storage, the model uses Voltage Controlled Current Source (VCCS) representations.

This model defines how the inverter injects current during faults.

Dynamic Stability Modeling

Dynamic models simulate system behavior during disturbances.

Examples include:

• generator trips
• transmission faults
• voltage disturbances
• frequency deviations

NYISO requires models using PSSE dynamic simulation models.

Typical inverter-based resource models include:

• REGCA1 generator model
• REECA1 electrical control model
• REPCA1 plant controller model



Protection models must comply with NERC PRC-024 ride-through standards.

Model Validation and Testing

NYISO performs several validation tests before accepting project models.

Two major tests include:

• 20-Second Flat Run Test
• The system is simulated without disturbances for 20 seconds.

Acceptance criteria include:



• generator power deviation < 0.1 MW
• reactive power deviation < 0.1 MVAR
• stable voltage and rotor angle behavior


Fault Ride-Through Test

A 9-cycle three-phase fault is applied at the POI.

The project must:

• remain connected
• recover voltage quickly
• maintain system stability


Long-Term Grid Modeling Methodologies

Beyond interconnection studies, NYISO performs long-term planning simulations to forecast grid evolution.

These analyses rely on complex modeling frameworks.

Production Cost Modeling

To study future resource additions, NYISO uses capacity expansion models such as PLEXOS.



These models simulate:

• generator retirements
• renewable buildout
• energy storage deployment
• transmission expansion

They help determine the least-cost generation mix required to meet policy goals.

Modeling Renewable Energy Integration

Renewables introduce variability and uncertainty.

NYISO incorporates renewable profiles using historical weather data.

Wind and solar production profiles are developed from:

• historical weather year simulations
• zonal renewable generation data
• site-level resource information

These profiles ensure accurate modeling of renewable variability.

Load Forecast Modeling

Electricity demand forecasts play a key role in planning studies.

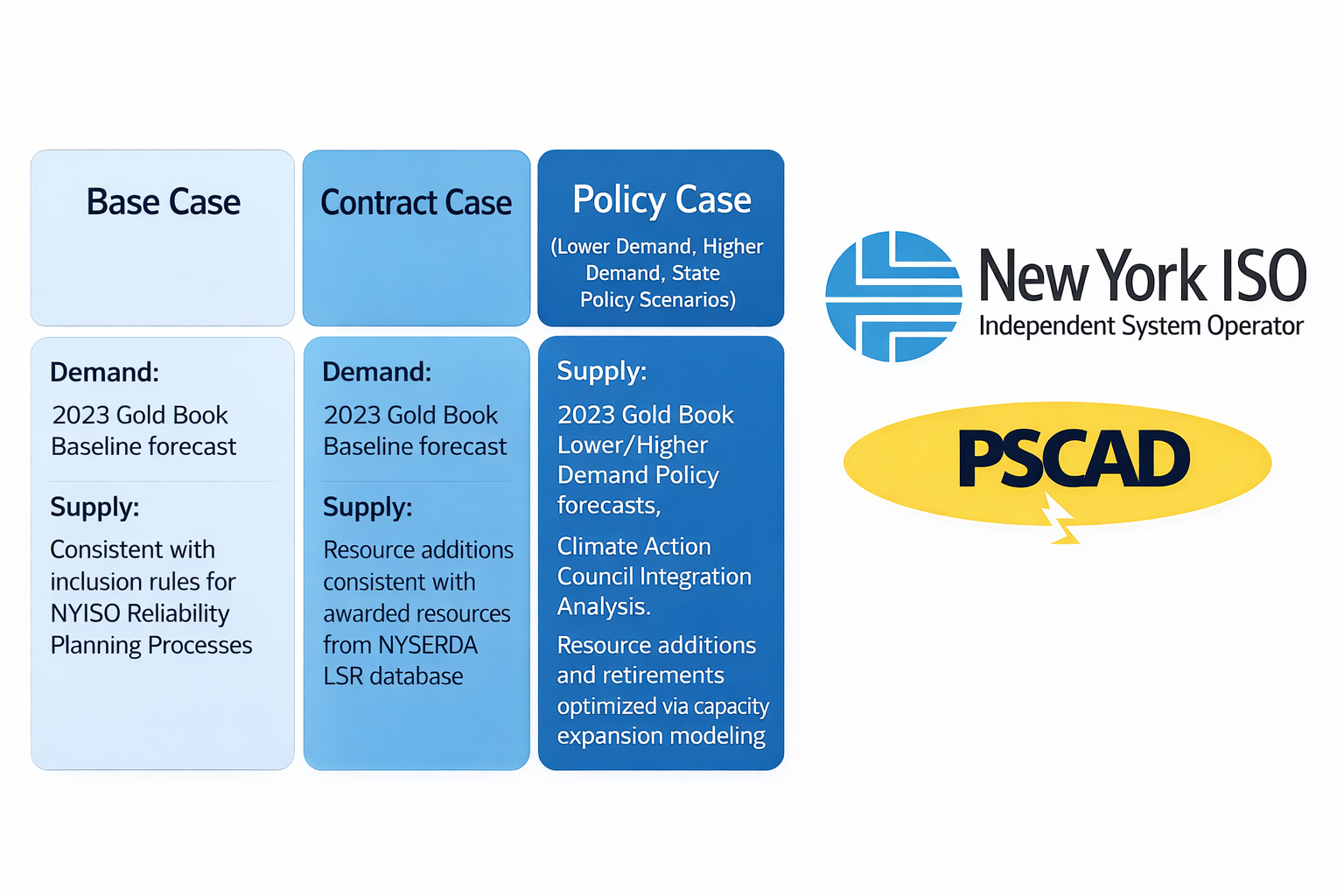

NYISO models several demand scenarios including:

• Base Case
• Contract Case
• Policy Case

Each scenario reflects different assumptions about:

• electrification
• renewable deployment
• economic growth
• energy efficiency programs


Modeling External Power Systems

NYISO simulations also include neighboring grid operators such as:

• PJM
• ISO-New England
• Ontario IESO

These external systems influence power imports, exports, and transmission congestion.

The Importance of Accurate Power System Modeling

Accurate modeling is essential for:

• reliable interconnection studies
• transmission planning
• renewable integration
• reliability compliance
• market simulations

Errors in modeling can lead to incorrect planning decisions, costly delays, or reliability risks.

Engineering firms specializing in power system studies such as Keentel Engineering play a critical role in ensuring that developers meet these requirements.

How Keentel Engineering Supports Interconnection Modeling

Keentel Engineering provides advanced power system modeling services for utilities, renewable developers, and transmission owners.

Key services include:

• PSSE modeling and dynamic simulation
• ASPEN short circuit studies
• renewable interconnection studies
• stability analysis
• NERC compliance modeling
• grid integration studies for solar, wind, and BESS

With extensive experience across ISO/RTO regions, Keentel Engineering helps clients navigate complex interconnection requirements and accelerate project development.
