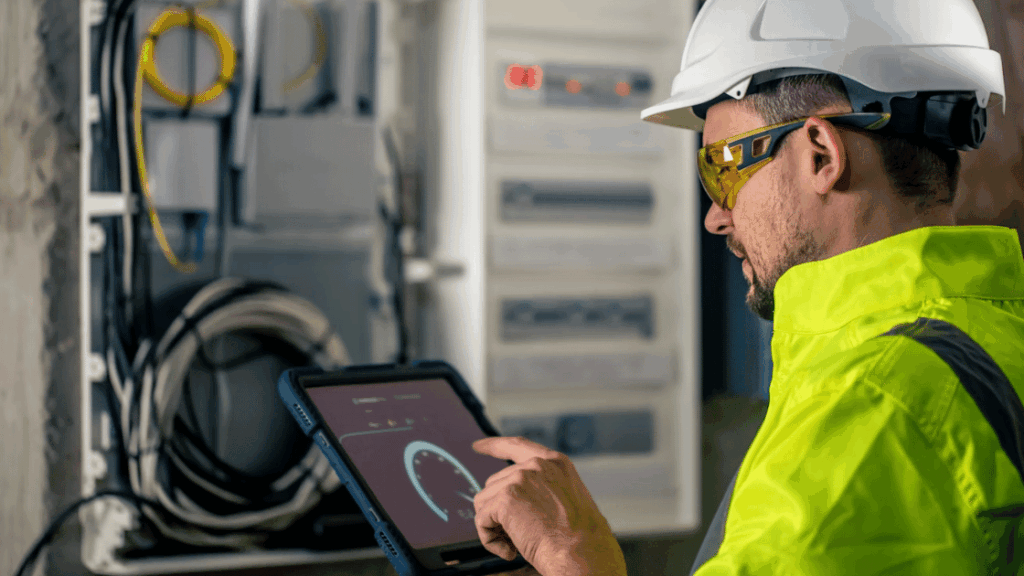

A technician in a hard hat and high-visibility jacket uses a tablet to inspect wiring in an electrical control panel.

Overview

Keentel Engineering offers a full suite of power system studies using advanced simulation tools like ETAP, serving utilities, renewable developers, EPC firms, and industrial clients. Our deep expertise spans HV/EHV transmission, MV distribution, and LV village electrification, ensuring safe, reliable, and efficient grid integration.

Key Study Services

Our power system study solutions are designed to meet utility requirements, regulatory standards, and modern grid reliability challenges.

1. High- & Extra-High Voltage (HV/EHV) Studies

For transmission systems up to 765 kV:

  • Load Flow & Contingency Analysis
  • Short-Circuit and Fault Level Determination
  • Protection Coordination (Relay Settings)
  • Transient & Voltage Stability
  • Electromagnetic Transient Studies
  • Ground Grid & Lightning Protection Design
  • Harmonic and Resonance Analysis


Keentel Engineering relay services include advanced protection coordination, relay setting optimization, and compliance with industry standards.

2. Medium Voltage (MV) Studies

Covering 4.16 kV to 34.5 kV:

  • Motor Starting & Acceleration
  • Cable Sizing and Derating
  • Arc Flash Risk Analysis
  • Switchgear Coordination
  • Load Forecasting and Optimization
  • Renewable Energy Interconnection Studies

3. Low Voltage (LV) Studies for Rural/Village Grids

Designing community-based systems:

  • Mini-grid Design (Off-grid & Grid-Tied)
  • Battery Sizing & Load Profiling
  • DC and AC Load Flow
  • Reliability & Power Quality Assessments
  • Economic Feasibility Reports

How Keentel Leverages ETAP

We use ETAP’s extensive modules, such as:

  • Load Flow, Short-Circuit (ANSI/IEC), Harmonic, Arc Flash, Motor Acceleration, Reliability, and Ground Grid systems.
  • Composite networks and nested one-line diagrams to model large interconnected systems.
  • Wizards for automating scenario-based simulations and bulk study execution.
  • Data integration with manufacturer libraries and customizable reports.


All load flow and short-circuit studies are aligned with ANSI IEC load flow compliance standards to ensure accurate and reliable system analysis.

Frequently Asked Questions

  • What is load flow analysis and why is it important?

    A Load Flow Study determines voltage profiles, losses, and power flows—essential for proper design and planning.

  • What ETAP module is used for short-circuit studies?

    The Short-Circuit Analysis module, available in ANSI/IEC standards, identifies fault currents and breaker ratings.

  • How does Keentel perform relay coordination?

    Using ETAP’s STAR module, we generate time-current curves to set relays for selective coordination.

  • What are harmonic studies and who needs them?

    Harmonic studies assess distortion from non-linear loads; critical for data centers, solar farms, and drives.

  • What is transient stability analysis?

    It simulates system dynamics post-disturbances to verify generator synchronism and voltage recovery.

  • Can you simulate motor starting in MV systems?

    Yes, with both static and dynamic Motor Acceleration modules in ETAP.

  • How does ETAP handle nested systems?

    Through composite networks, allowing multi-level modeling of large substations or grids.

  • What is ETAP’s 3D database advantage?

    It lets us analyze different system configurations (status/presentations) without duplicating data.

  • How do you assess arc flash hazards?

    Using NFPA 70E and IEEE 1584 methods, we calculate incident energy and suggest PPE.

  • Do you provide village microgrid designs?

    Yes, we deliver mini-grid configurations with battery, PV, and diesel integration.

  • How is cable derating evaluated?

    ETAP’s Underground Raceway module considers soil, conduit fill, and temperature.

  • What role does ground grid analysis play?

    It ensures touch/step potentials are within IEEE 80 limits for personnel safety.

  • Can you model LV systems in ETAP?

    Yes, including panels, circuits, and DC/AC configurations.

  • What is load shedding optimization?

    ETAP’s Real-Time and OPF tools determine optimal load curtailment under emergencies.

  • How do you ensure transformer protection?

    By analyzing differential, overcurrent, and inrush protection settings in STAR.

  • What inputs are needed for battery sizing?

    Duty cycle, voltage drop, autonomy period, and load priority.

  • What is ETAP’s reliability index library?

    A database with MTTR and MTBF values used to assess overall system availability.

  • Can ETAP simulate black-start scenarios?

    Yes, using sequence of operation and event playback features.

  • What study covers earthing system design?

    Ground grid analysis with 3D modeling of rods, conductors, and soil layers.

  • How are cable pulling tensions calculated?

    Using ETAP’s Cable Pulling module with 3D conduit layout.

  • Can you model control schemes in ETAP?

    Yes, via Control System Diagram (CSD) for logic-based sequences.

  • Do you evaluate switchgear adequacy?

    Absolutely, via short-circuit and load flow results correlated with nameplate data.

  • How do you approach unbalanced systems?

    Using the Unbalanced Load Flow module to handle 1-phase, 2-phase loads in 3-phase systems.

  • What are the benefits of using ETAP over spreadsheets?

    Data integrity, simulation accuracy, scenario management, and compliance reporting.

  • Does Keentel offer compliance with IEEE/IEC standards?

    Yes, all studies align with IEEE 399, IEEE 242, IEC 60909, and relevant codes.

3 Case Studies – HV/EHV Studies

1. 500 kV Transmission Interconnection

  • Client: Confidential Utility
  • Scope: Load flow, transient stability, GIC impact
  • Outcome: Optimized tap settings, reinforced weak buses, NERC-compliant report.

2. 345 kV Substation Arc Flash and Relay Study


  • Client: Renewable Developer
  • Scope: Arc flash PPE boundaries, relay setting files
  • Outcome: Reduced incident energy below 8 cal/cm²; selective relay tripping confirmed.

3. 230 kV Underground Transmission Cable


  • Client: EPC Contractor
  • Scope: Cable pulling, thermal ampacity, fault current withstand
  • Outcome: Validated pulling feasibility and safe sizing under worst-case fault.

3 Case Studies – Medium Voltage Studies

1. 15 kV Solar Collector System Coordination

  • Client: Solar EPC
  • Scope: Short-circuit, protection study, cable layout
  • Outcome: Breaker and fuse coordination ensured smooth integration to POI.

2. 13.8 kV Industrial Plant Expansion

  • Client: Food Processing Plant
  • Scope: Motor starting study and arc flash evaluation
  • Outcome: Identified voltage dip on startup, mitigated by staggered sequencing.

3. 4.16 kV Switchgear Retrofit

  • Client: Utility Substation
  • Scope: Protection upgrade and harmonics
  • Outcome: Cleaned 5th harmonic resonance with filter design and updated TCCs.

2 Case Studies – Low Voltage Village Grids

1. Off-grid Village Electrification

  • Location: South Asia
  • Scope: 3-phase/1-phase hybrid mini-grid with solar and battery
  • Outcome: 95% uptime, optimized battery size, zero overload alerts.

2. Grid-Tied Agricultural Community

  • Location: East Africa
  • Scope: Load flow, transformer sizing, night load balancing
  • Outcome: Load diversity utilized to avoid overdesign, saving $120k in capex.

Learn more about our full suite of Power System Studies to support reliable grid integration and compliance.
