FAC-008 requires Transmission Owners and Generator Owners to document how they determine Facility Ratings and then to have ratings that are consistent with that documentation. The rating of a Facility must respect the most limiting applicable Equipment Rating of the individual equipment that makes up the Facility.
In practice, a defensible rating has four links. If any one is missing, the rating cannot be demonstrated — even when the number itself happens to be right:
Facility ratings and extreme weather are named ERO priorities for 2026, and Regional Entities are testing all four links — methodology, equipment record, calculation and communication — rather than accepting a ratings table at face value. Confirm the version of FAC-008 in effect for your audit period; revisions to the standard have been under development.
FAC-008 splits responsibility by ownership. Jointly owned Facilities and generator interconnection facilities are where gaps most often appear, so the boundary of each owner’s ratings should be written down, not assumed.
| Responsibility area | Generator Owner | Transmission Owner |
|---|---|---|
| Facilities in scope | Its generator Facility, including the generating unit and the equipment up to the main step-up transformer, and any Facilities it owns between the generator step-up transformer and the point of interconnection | Its solely and jointly owned transmission Facilities |
| Rating documentation | Documentation of how generator Facility Ratings are determined, and a methodology for any interconnection Facilities it owns between the GSU and the POI | A documented Facility Ratings methodology covering each equipment type it owns |
| Rating categories | Normal and emergency ratings as the methodology defines them | Normal and emergency ratings as the methodology defines them |
| Consistency | Ratings consistent with its documentation and methodology | Ratings consistent with its methodology |
| Providing ratings | Facility Ratings provided to the entities that need them — typically its RC, PC, TP, TO and TOP — on their schedules | Facility Ratings provided to requesting planning and operating entities, plus limiting-element information when requested |
| Typical evidence | Generator capability data, GSU and gen-tie ratings, POI switch and breaker ratings, relay limits, transmittal records | Methodology, equipment database, rating calculations, most-limiting-element tables, transmittal and request-response records |
Exact requirement wording, the definition of the GO boundary and the communication obligations vary between versions of the standard. We map your Facilities to the version in effect before rating work begins.
The methodology is the rulebook every rating is checked against. It must be specific enough that two engineers applying it to the same equipment reach the same rating, and broad enough to cover every equipment type you own — including the ones that rarely limit.
Conductor and transformer ratings depend on ambient temperature, wind and solar conditions. The methodology should state the assumed conditions for each rating category, how seasonal periods are defined and how the assumptions were chosen. Where an owner also calculates ambient-adjusted ratings for tariff purposes, the methodology should explain how those relate to the ratings reported under FAC-008.
Normal and emergency ratings must each be defined, including the duration associated with emergency ratings. The methodology should state that each Facility Rating respects the most limiting applicable Equipment Rating, and should explain how the limiting element is identified for each rating category and season.
Put your FAC-008 methodology, equipment records and field evidence on the same page before the next audit or ratings review.

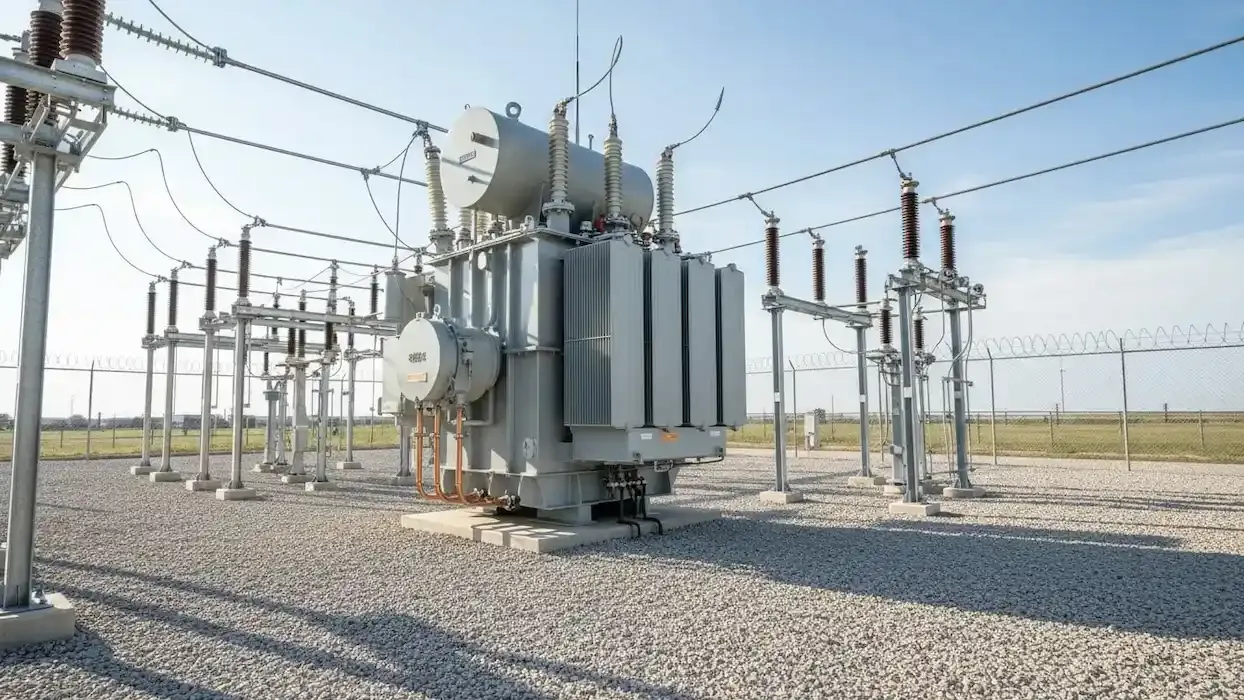

A Facility is only as strong as its weakest series element. The table below shows the equipment types a complete methodology addresses and the typical basis for each rating. Your methodology may use different references; what matters is that it states them and applies them consistently.
| Equipment type | Typical rating basis | Common pitfalls |
|---|---|---|
| Overhead conductors | Thermal rating by a recognized method such as IEEE 738, using stated ambient, wind, solar and maximum operating temperature; clearance-based limits where applicable | Design temperature exceeds the temperature at which required clearances are maintained |
| Power transformers and GSUs | Nameplate MVA with loading capability by IEEE C57.91 or manufacturer guidance for emergency ratings | Emergency ratings assumed without loading study; auxiliary cooling status not reflected |
| Circuit breakers | Continuous current rating from nameplate; ambient adjustment per manufacturer or applicable IEEE application guidance | Replacement breaker rated lower than original, database not updated |
| Disconnect switches | Continuous current rating from nameplate; loadability per manufacturer or applicable IEEE guidance | Older switches omitted from database; bypass switches overlooked |
| Current transformers | Primary rating and continuous thermal rating factor at the selected tap | Tap or ratio changed during relay work; rating factor not considered |
| Protective relays | Load-limiting settings of overcurrent and distance elements, consistent with relay loadability requirements | Relay setting becomes the limiting element after a settings change |
| Wave traps / line traps | Continuous current rating from nameplate | Legacy traps left in service after PLC retirement and never rated |
| Jumpers, bus and connectors | Conductor or bus ampacity by design calculation; connector ratings from manufacturer | Jumpers undersized relative to line conductor; bus ratings copied from design without as-built check |
| Series and shunt devices | Nameplate continuous and short-time ratings for series reactors, capacitors and similar devices | Series devices treated as outside the Facility |
| Metering and terminal equipment | Nameplate ratings of any series-connected terminal equipment | Revenue metering CTs and risers not inventoried |
Once every series element has a normal and emergency rating, the Facility Rating for each category and season is the lowest applicable Equipment Rating in the path. That sounds simple; the discipline is in proving it.
A reviewer will take a sample of Facilities and recalculate the ratings using your methodology. If the methodology says conductor ratings assume one ambient temperature and the calculation used another, or if an equipment type the methodology lists is missing from the Facility, the rating is not consistent with the methodology — even if it is conservative.
We produce a limiting-element table for each Facility that shows every series element, its ratings, the governing element for each category and the next most limiting element. That table is the fastest way to answer an auditor, a planner or an operator — and to see what an upgrade would actually buy.
FAC-008 requires ratings to be provided to the entities that need them and, for Transmission Owners, limiting-element information to be provided when requested. We set up the transmittal and request-response records so that each request, the information supplied and the date are retrievable during an audit.

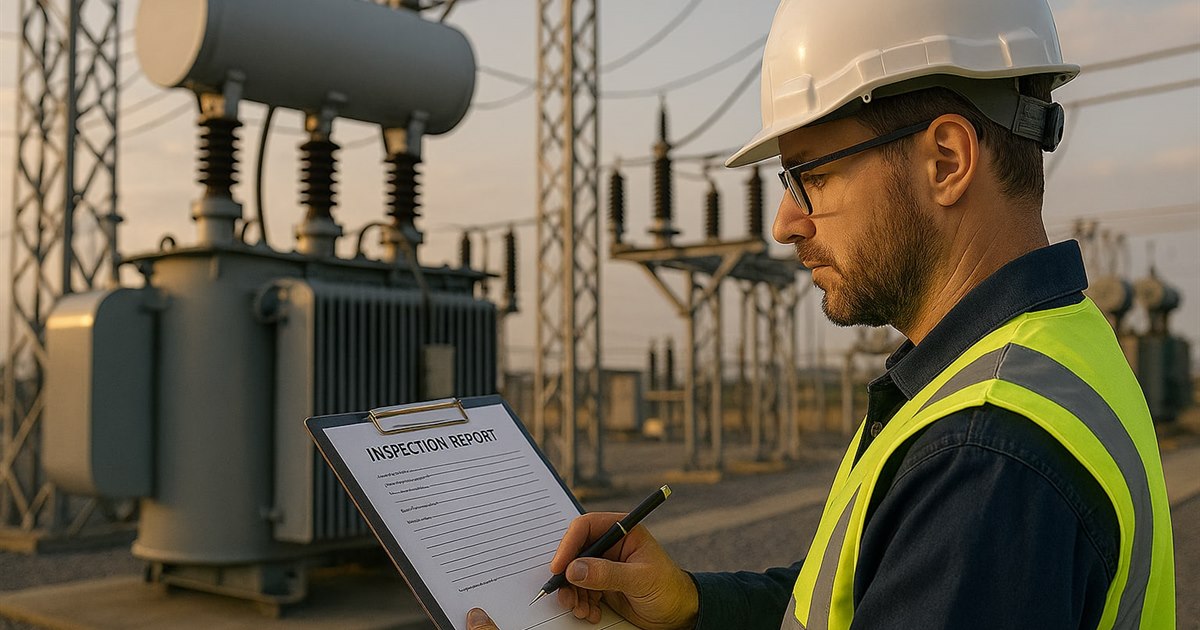

Most ratings problems are not calculation errors. They are record errors — the database describes equipment that is no longer there. Field verification closes that gap.
Facilities prioritized by risk — oldest records, most change activity, highest loading — with a checklist tied to every series element in the database.
Photographs and nameplate data for breakers, switches, CTs, wave traps, transformers and terminal equipment, linked to the database record.
One-lines, three-lines, relay settings and bus drawings compared with field findings; discrepancies logged with a unique ID.
Jumper sizes, bus configuration and — where the methodology uses clearance-based limits — line clearance data reviewed against the rating temperature.
Each finding classified: record-only correction, rating change, or potential noncompliance requiring extent-of-condition review.
Corrected equipment records, recalculated ratings and updated limiting-element tables, with a before-and-after record.

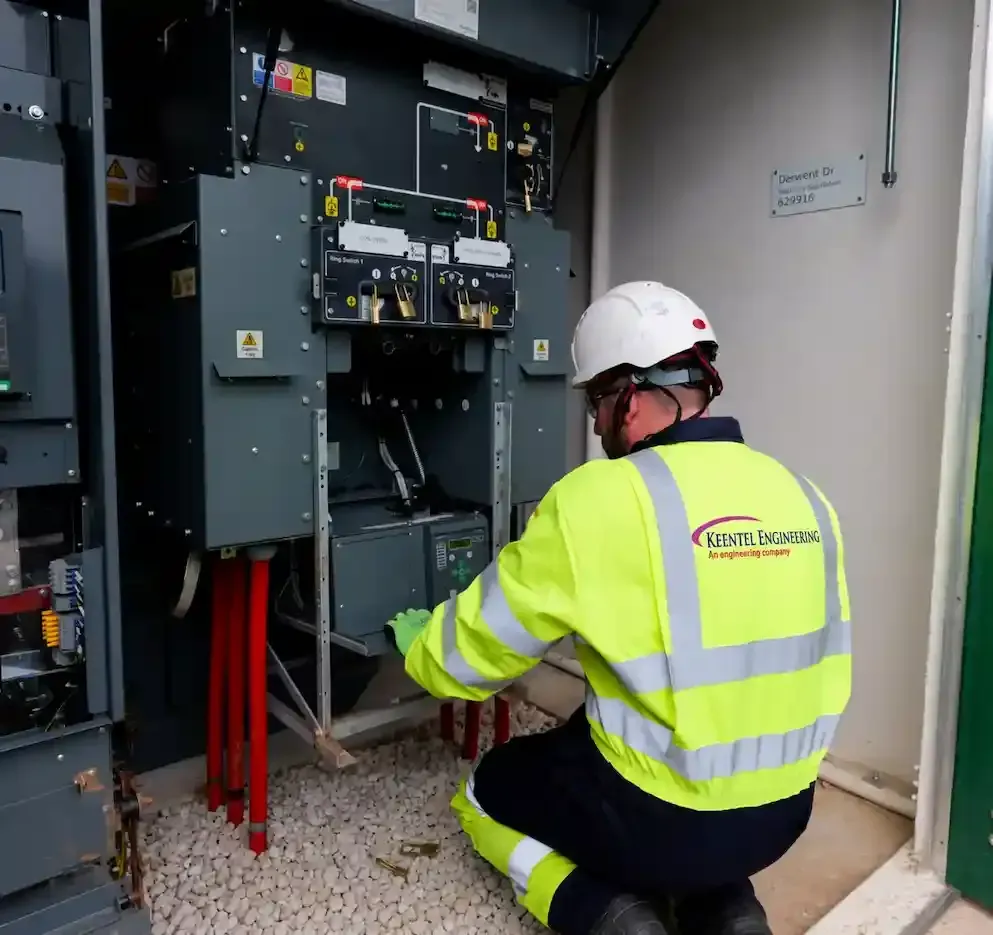

A ratings database is accurate on the day it is verified. After that, every capital project, maintenance replacement and relay settings change is an opportunity for it to drift. Change control is the internal control that prevents drift.
Facility ratings have been a recurring ERO Enterprise concern for more than a decade. NERC has previously alerted industry to consider actual field conditions — such as conductor clearances — when determining ratings, and later ERO Enterprise and industry work, including guidance from organizations such as the North American Transmission Forum, has focused on the same root causes: incomplete equipment inventories, weak change management and methodologies that do not reflect the equipment actually installed.
When a discrepancy is found, the question an auditor will ask is not only “what did you fix?” but “how do you know it is the only one?”
Where a discrepancy may be a potential noncompliance, our Self-Report, Investigation & Enforcement Support service (Inner Page 10) helps structure the self-report, mitigation plan and extent-of-condition evidence.
Identify every Facility you own or jointly own, the GO/TO boundary at each interconnection and the version of FAC-008 in effect.
Test the methodology against every equipment type in your inventory, the rating sources used and the ambient assumptions stated.
Assemble equipment-level records from drawings, nameplates and maintenance systems, with a source for every rating.
Walk down prioritized Facilities, reconcile as-built conditions and disposition every discrepancy.
Recalculate normal and emergency ratings, identify the most and next most limiting elements and issue limiting-element tables.
Transmit ratings, set up request-response records and embed change control in project and maintenance workflows.
| Deliverable | Purpose |
|---|---|
| Facility Ratings methodology (new or revised) | Rating sources, standards, ambient assumptions and rating categories for every equipment type you own |
| Methodology gap assessment | Line-by-line comparison of your methodology against the standard and your installed equipment |
| Equipment-level ratings database | Every series element with nameplate data, rating source and normal and emergency ratings |
| Limiting-element tables | Facility Ratings by category and season with most and next most limiting elements identified |
| Field verification report | Walk-down records, photographs, discrepancy log and disposition of each finding |
| Change-control procedure | Triggers, responsibilities and records that keep ratings current after projects and replacements |
| Extent-of-condition package | Cause, population, review method, results and corrective actions where discrepancies are found |
We design substations and transmission lines from 4 kV to 765 kV, so we know which series elements are easy to miss and where the limiting element usually hides.
Former NERC audit-team leadership and SMEs know how ratings samples are selected, recalculated and tested against the field.
Our relay engineers review load-limiting settings alongside the ratings, so PRC-023 and PRC-025 work stays consistent with FAC-008.
We rate conventional plants, solar, wind, BESS and transmission Facilities, including the GSU-to-POI equipment that often falls between owners.
Send us your ratings methodology, equipment database and a set of one-lines. Keentel will test them against the standard and a sample of your installed equipment, and show you exactly where the chain of evidence breaks.
